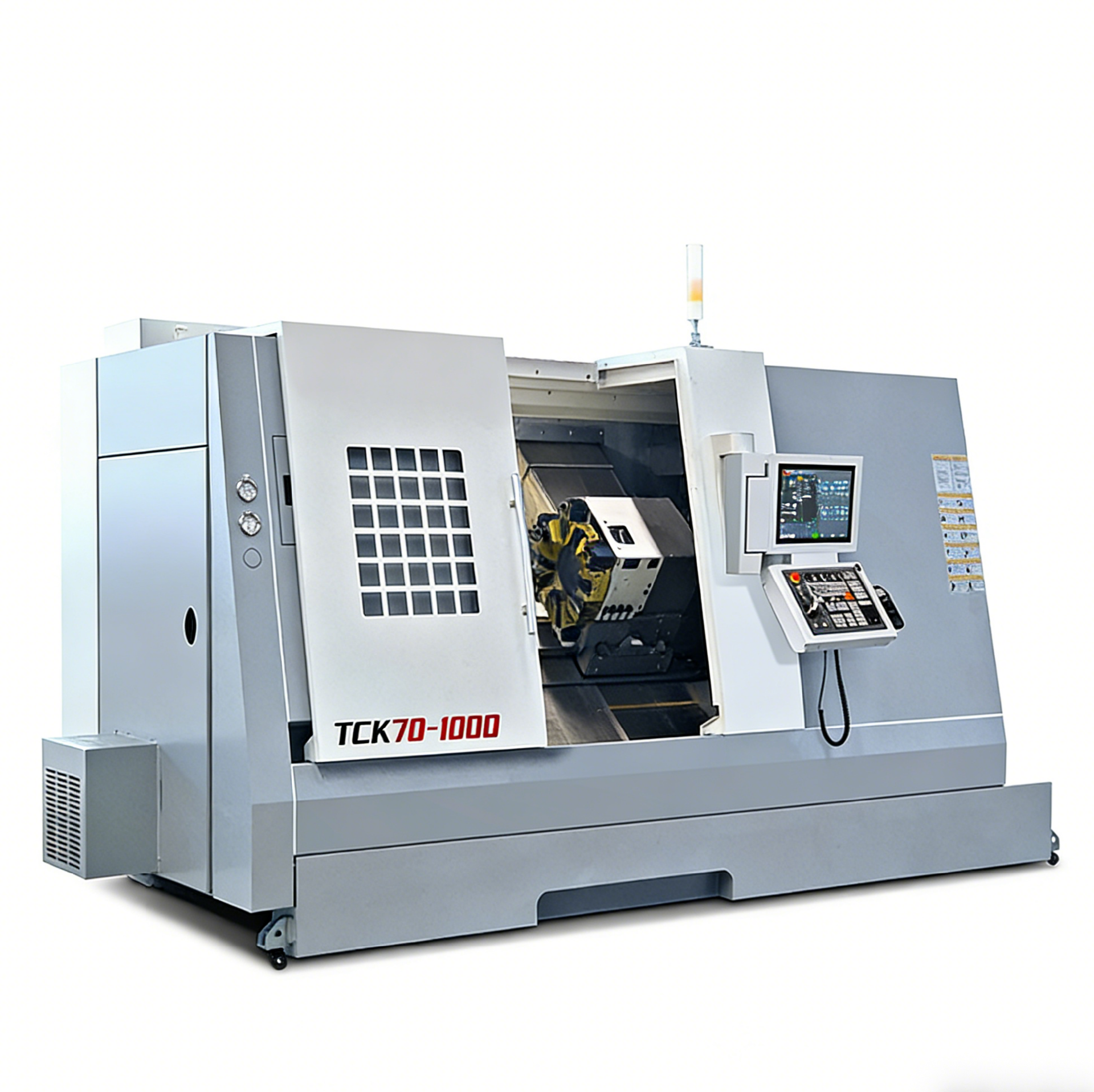

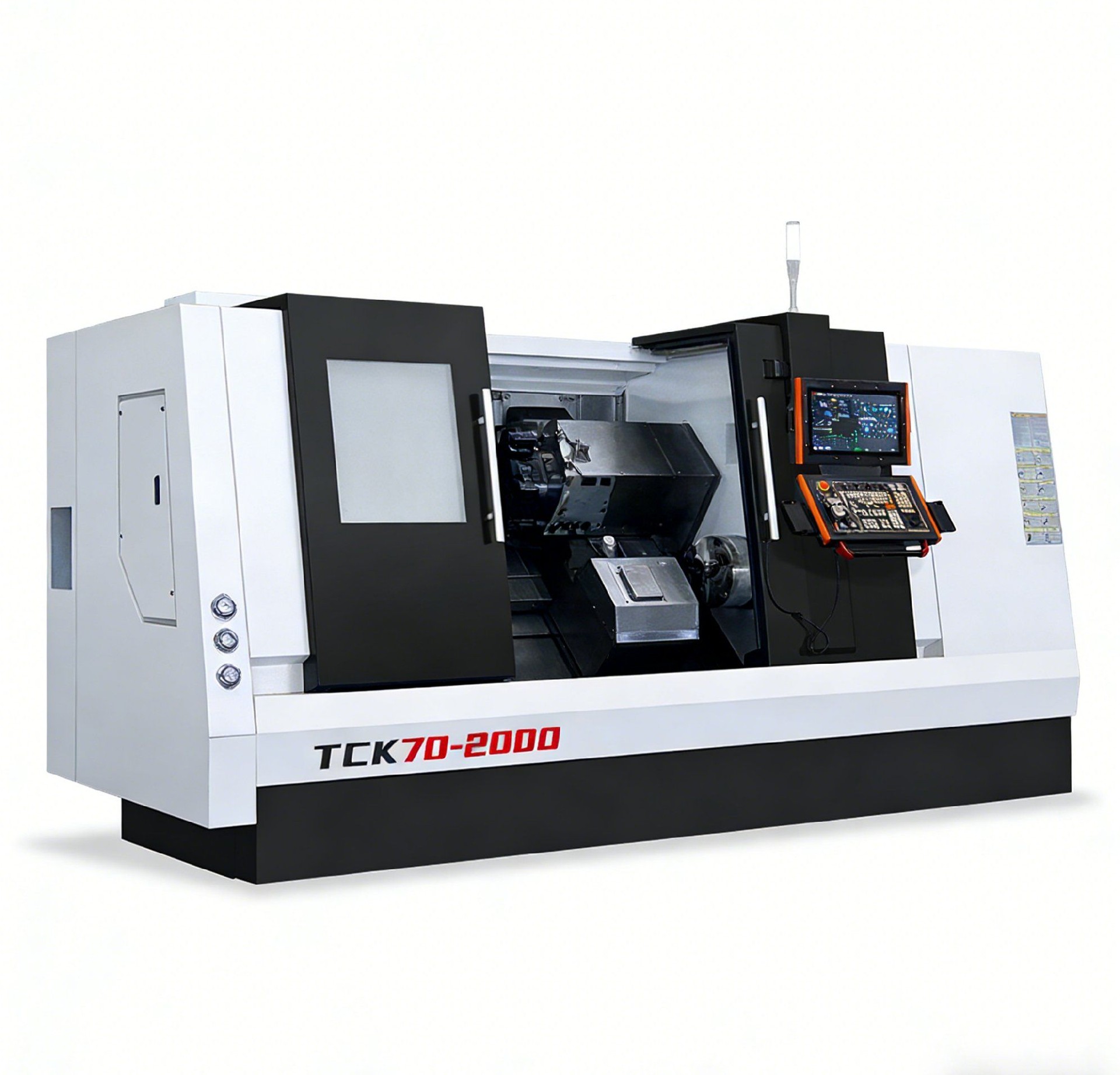

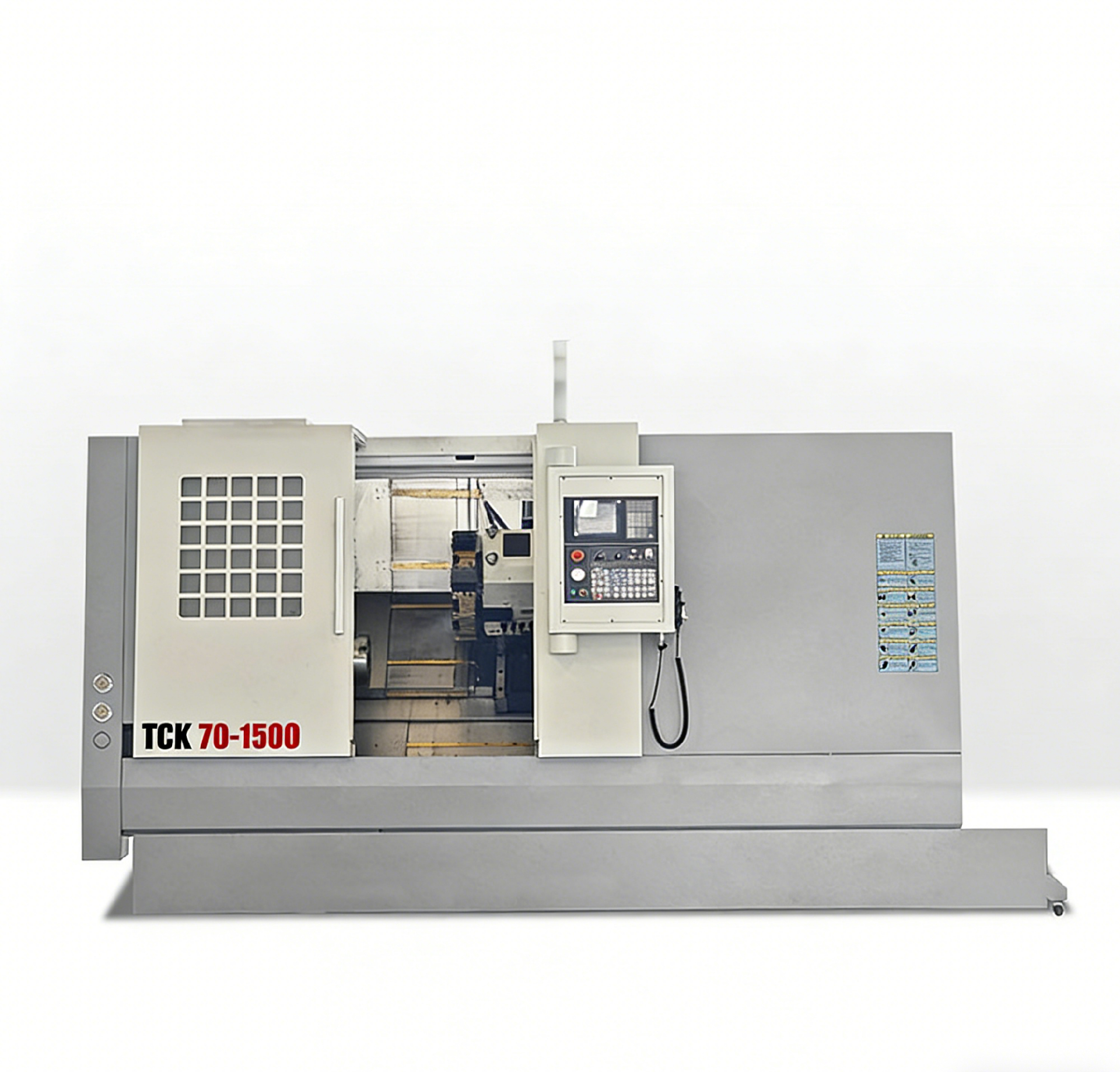

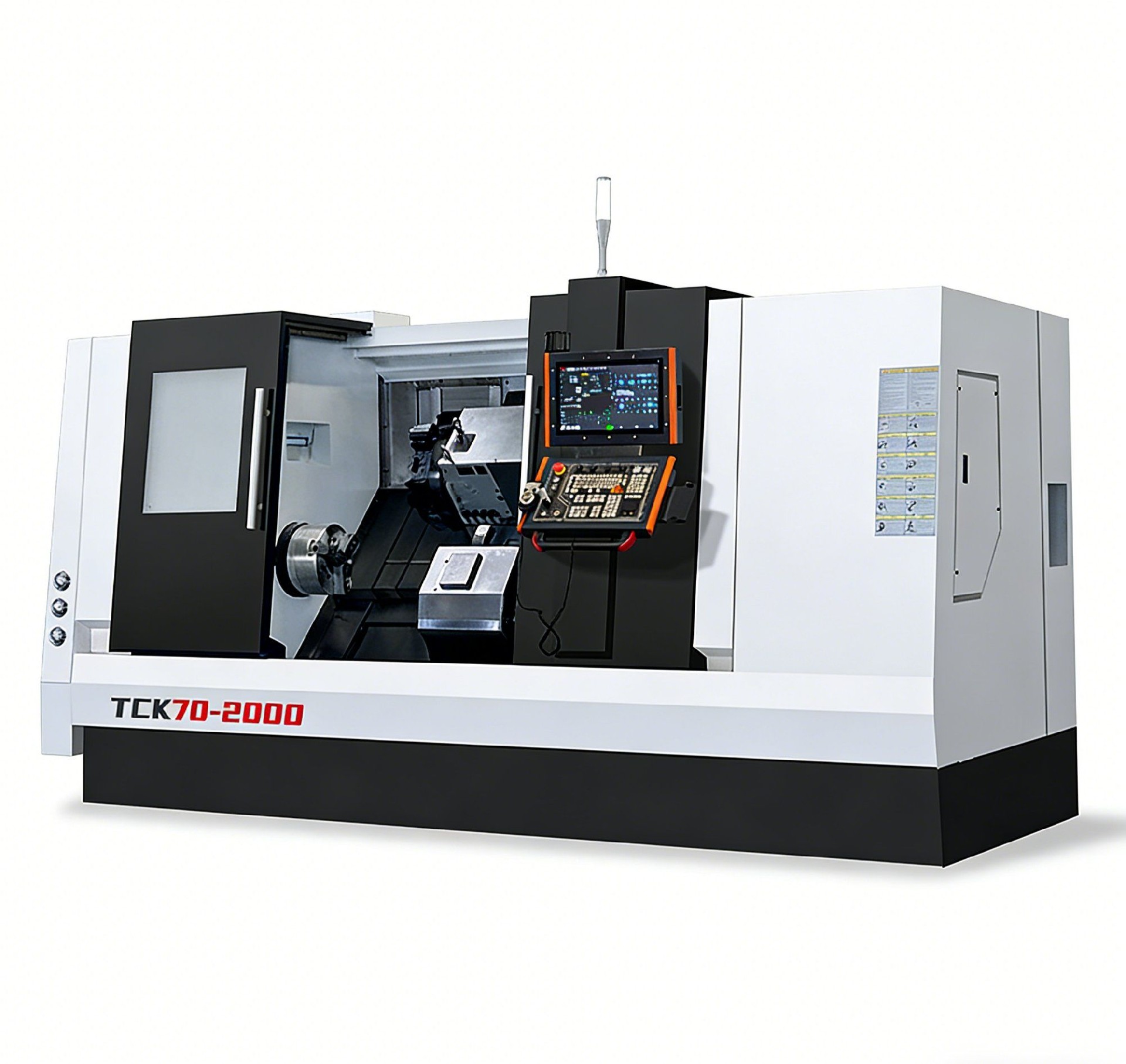

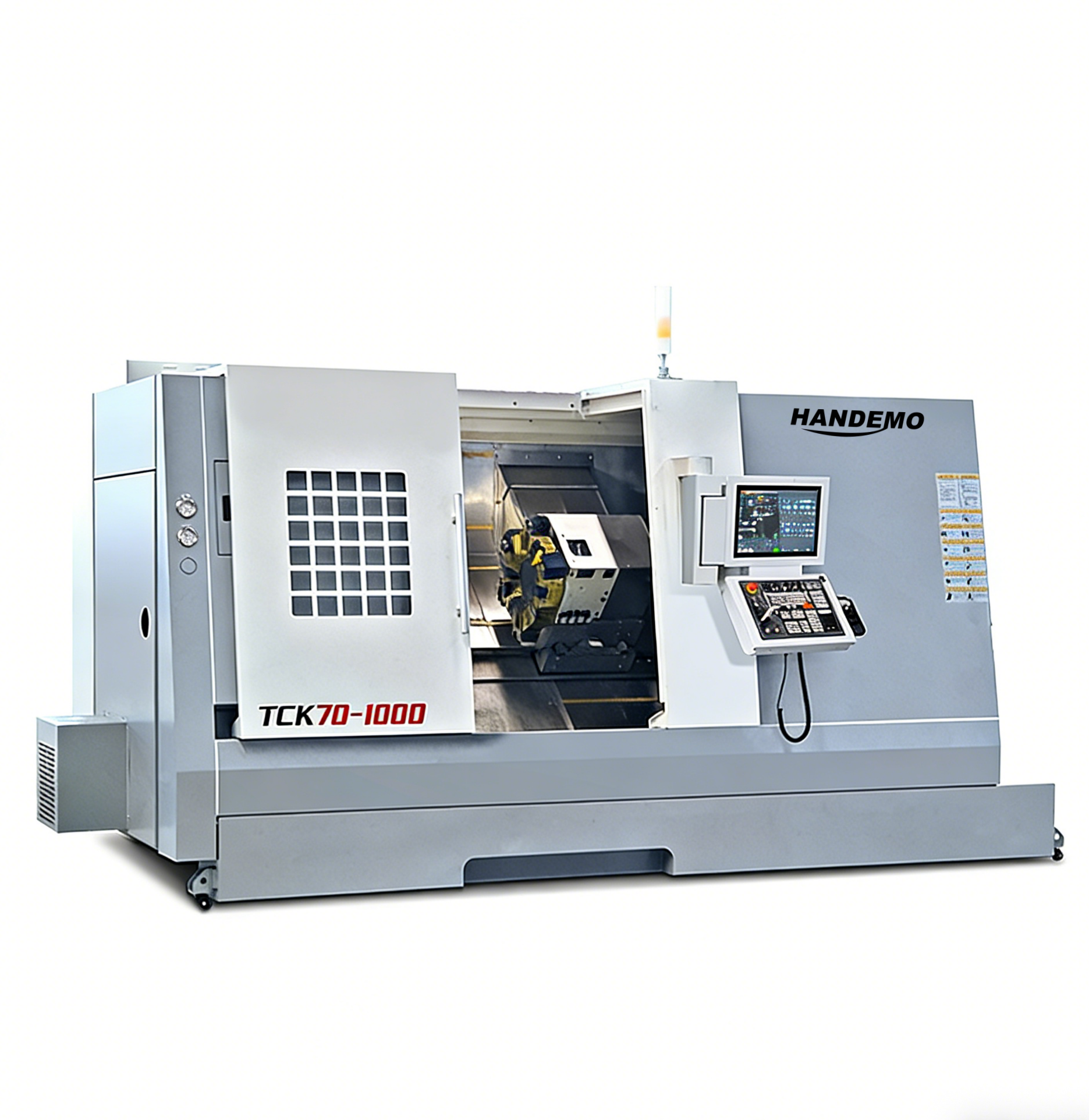

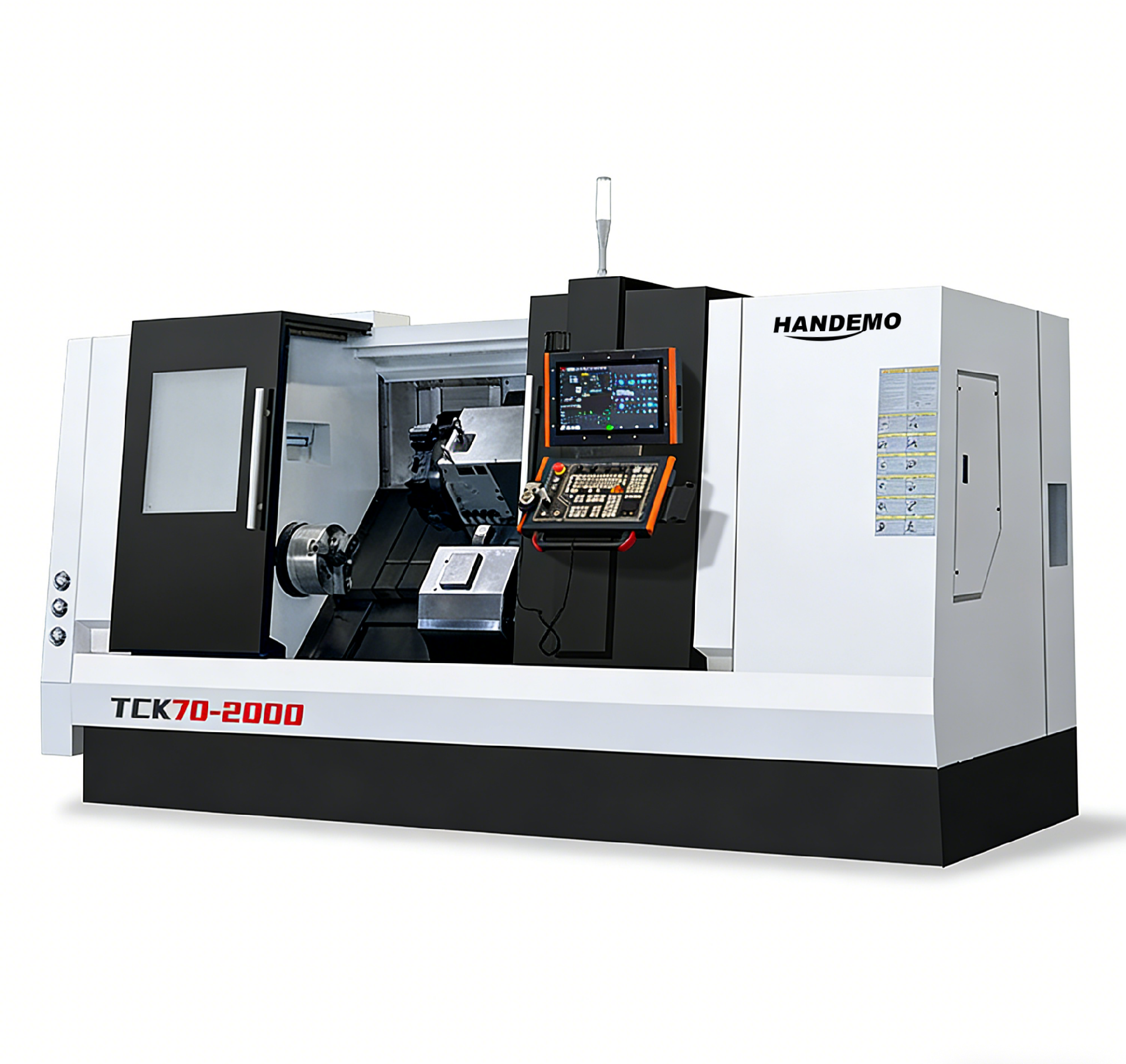

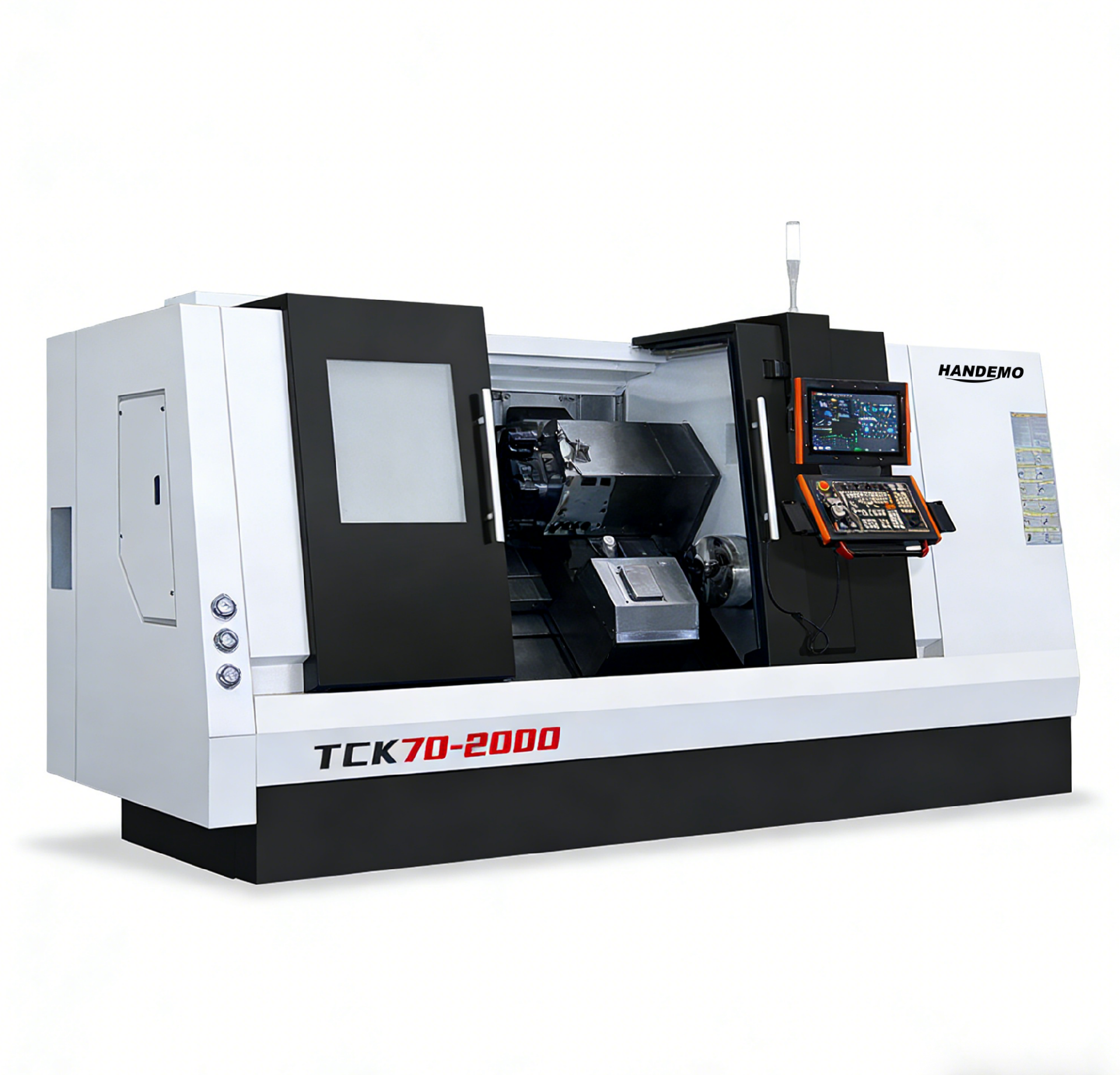

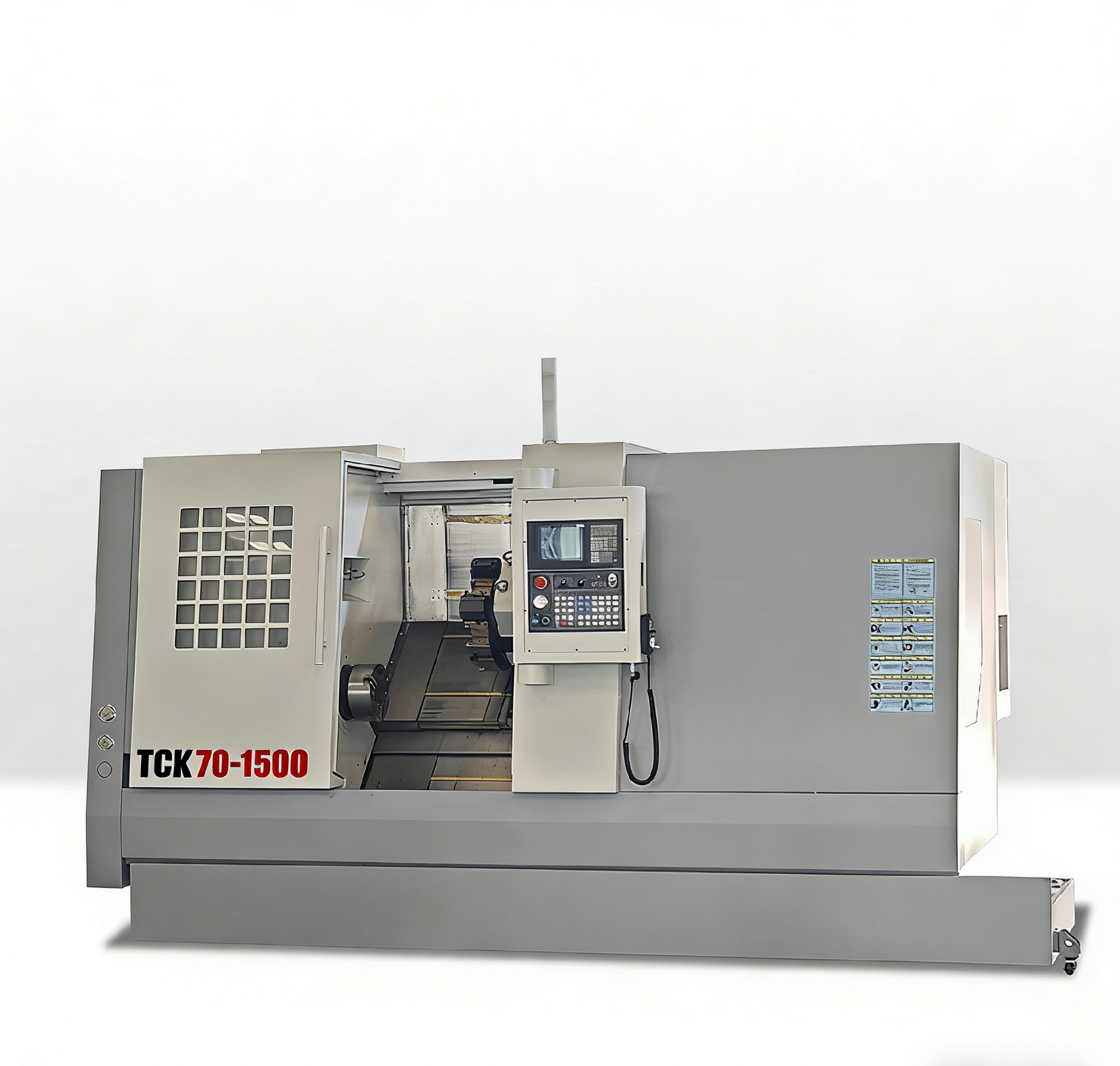

TCK70 General-Purpose High-Efficiency Model

CNC Slant Bed Lathe / General-Purpose High-Efficiency Model

*Large scale heavy cutting lathe series, overall 45 degree Slant bed A2-8/A2-11 large through-hole spindle

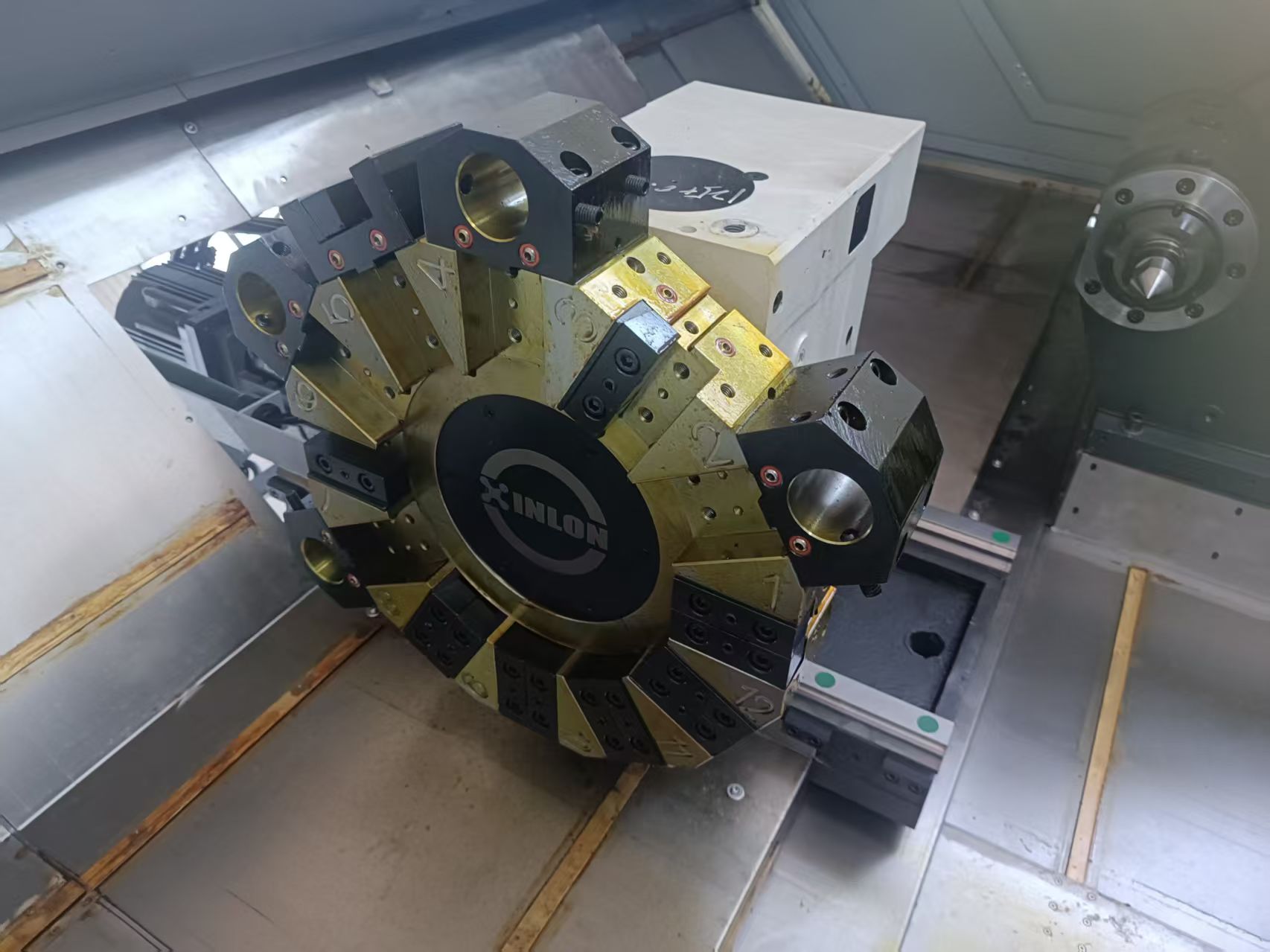

*This machine tool adopts a 12 station 125 center high turret, with a larger turret span and a single 12mm cutting tool
*Max. cutting length is 1000~3000mm

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	TCK70-1500	TCK70-2000	TCK70-3000
Max. swing over bed(mm)	720	720	720
Max. turning length(mm)	1500	2000	3000
Max. turning diameter(mm)	500	630	630
Max. swing over cross slide(mm)	420	420	420

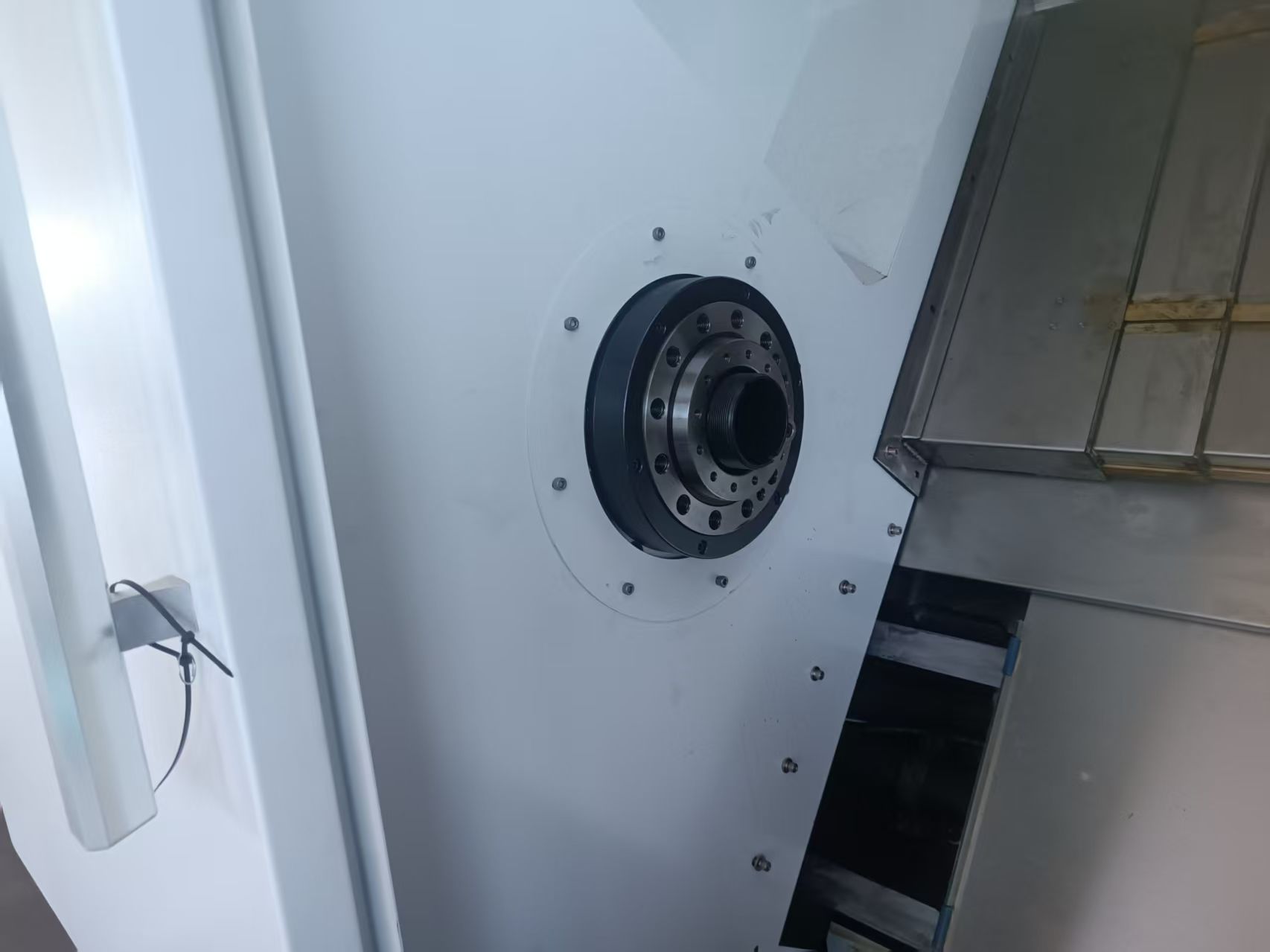

Spindle nose type / code	A2-8/A2-11	A2-8/A2-11	A2-8/A2-11
Spindle bore diameter(mm)	80	120	120
Max. bar capacity(mm)	70	90	90
Spindle motor output power（KW）	18.5	18.5	18.5
Rapid traverse – X‑axis（m/min）	12	10	10
Rapid traverse – Z-axis（m/min）	16	10	10
Travel – X‑axis(mm)	250	320	320
Travel – Z‑axis(mm)	1520	2050	3050

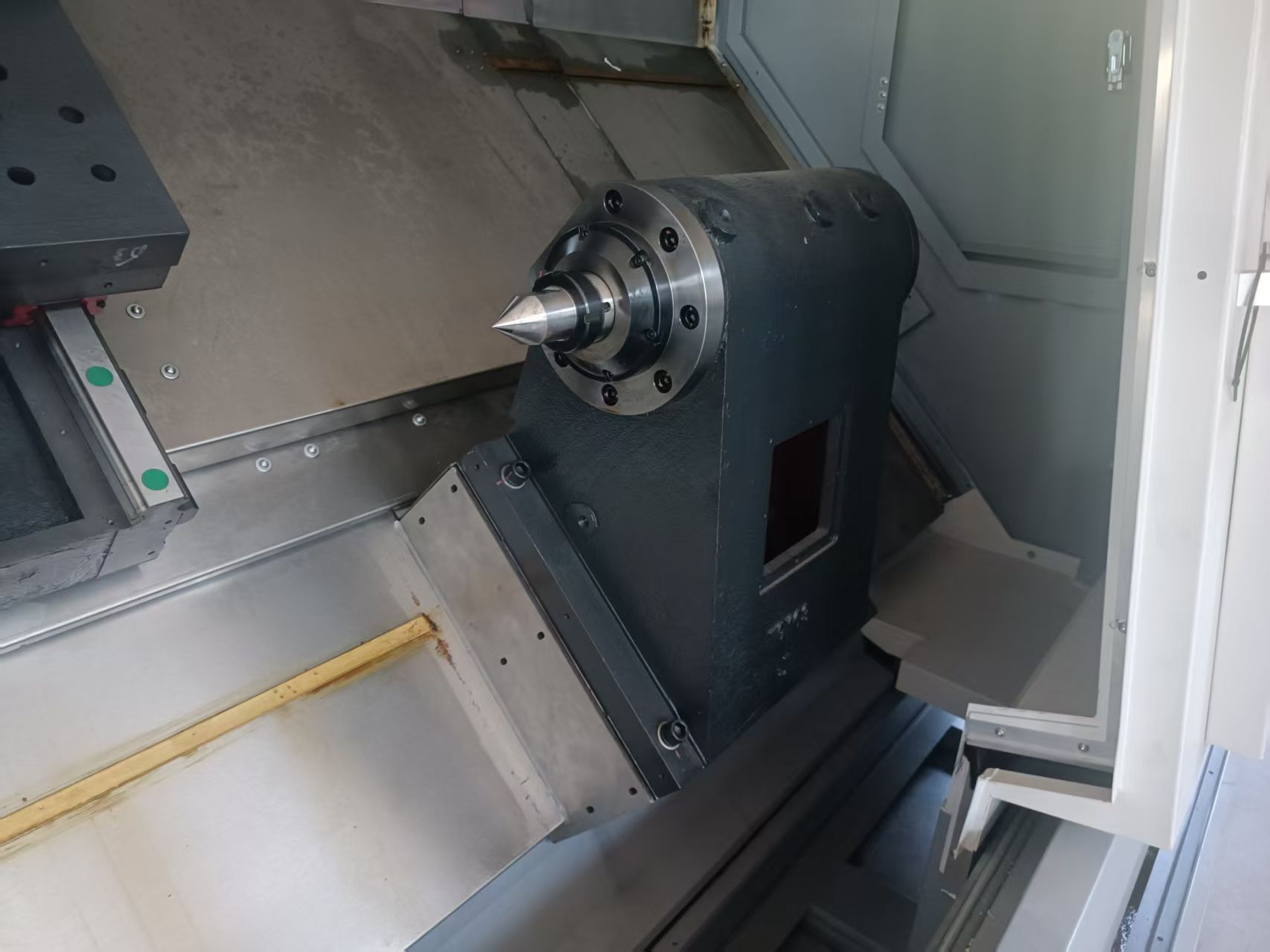

Tailstock travel(mm)	1400	1950	2800
Tailstock quill diameter(mm)	110	110	110
Tailstock quill stroke(mm)	100	100	100
Approx. gross weight(mm)	8500	9500	11000
