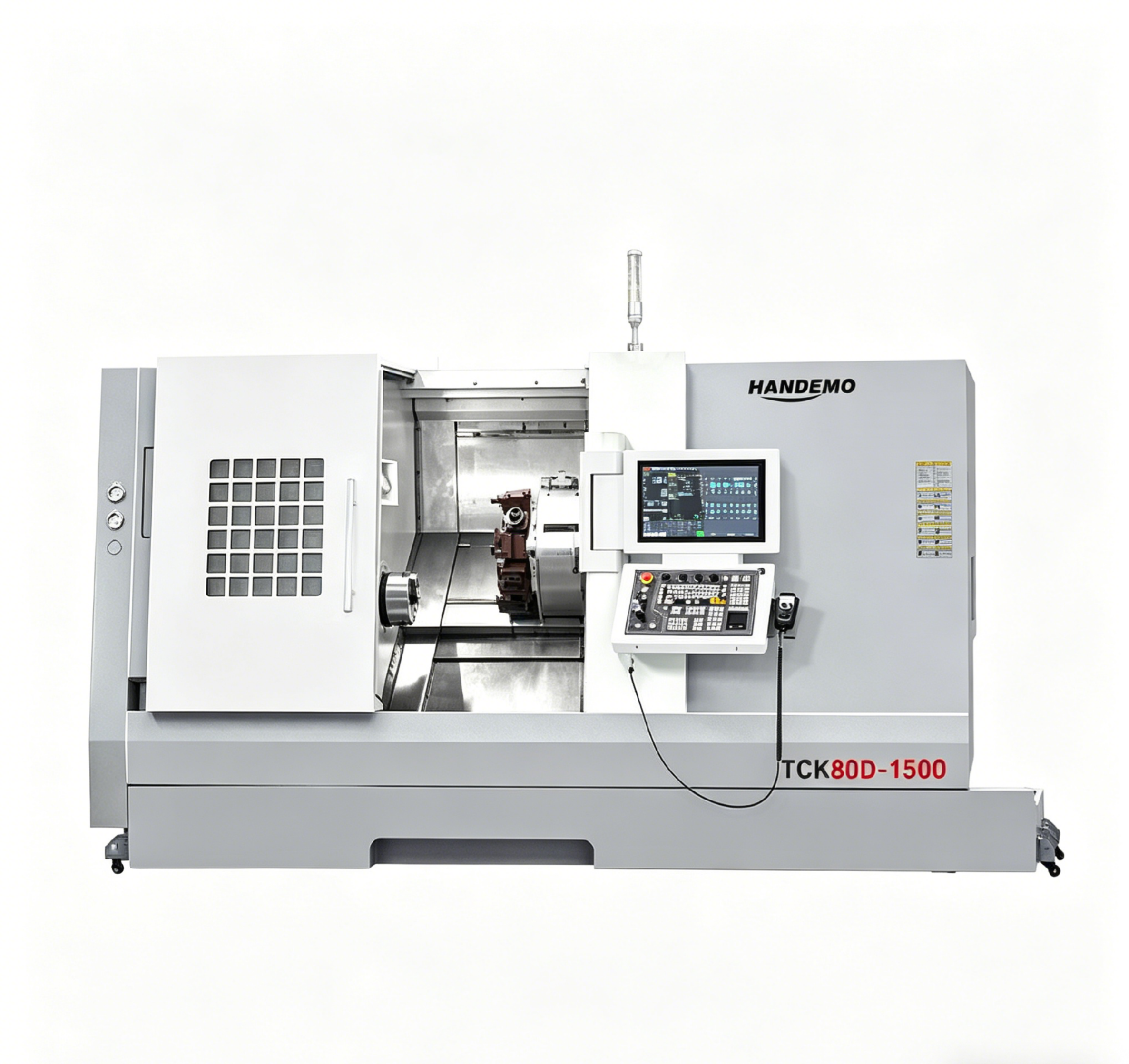

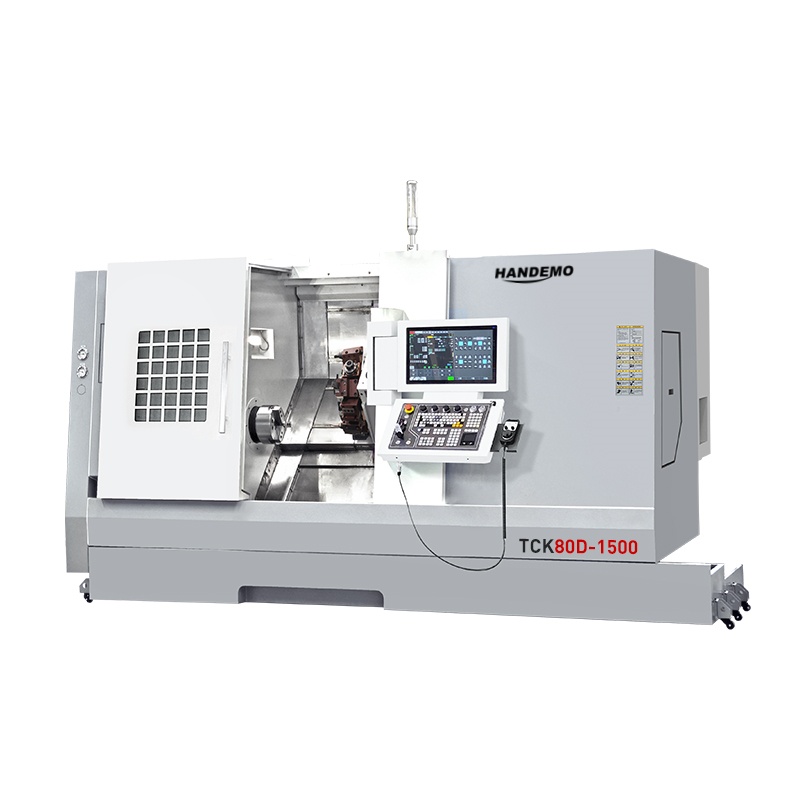

TCK80D-1500 CNC Slant Bed Lathe

CNC Slant Bed Lathe / High-End Precision Model

*Max. swing over bed 850 mm, max turning length 1450 mm, max turning diameter 700 mm, swing over cross slide 560 mm, standard turning diameter 550 mm
*Spindle nose type A2-11, spindle bore 120 mm, max bar capacity 90 mm, spindle motor output power 18.5/22 kW
*X-axis travel 410 mm, Z-axis travel 1500 mm, X/Z rapid traverse 10/10 m/min
*Tailstock travel 110 mm, tailstock quill stroke 100 mm
*Approx. gross weight 9000 kg

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	TCK80D-1500
Max. swing over bed(mm)	850
Max. turning length(mm)	1450
Max. turning diameter(mm)	700
Max. swing over cross slide(mm)	560
Standard turning diameter(mm)	550
Spindle nose type / code	A2-11
Spindle bore diameter(mm)	120
Max. bar capacity(mm)	90
Spindle motor output power(kW)	18.5/22
X-axis rapid traverse(m/min)	10
Z-axis rapid traverse(m/min)	10
X-axis travel(mm)	410
Z-axis travel(mm)	1500
Tailstock travel(mm)	110
Tailstock quill stroke(mm)	100
Approx. gross weight(KG)	9000
