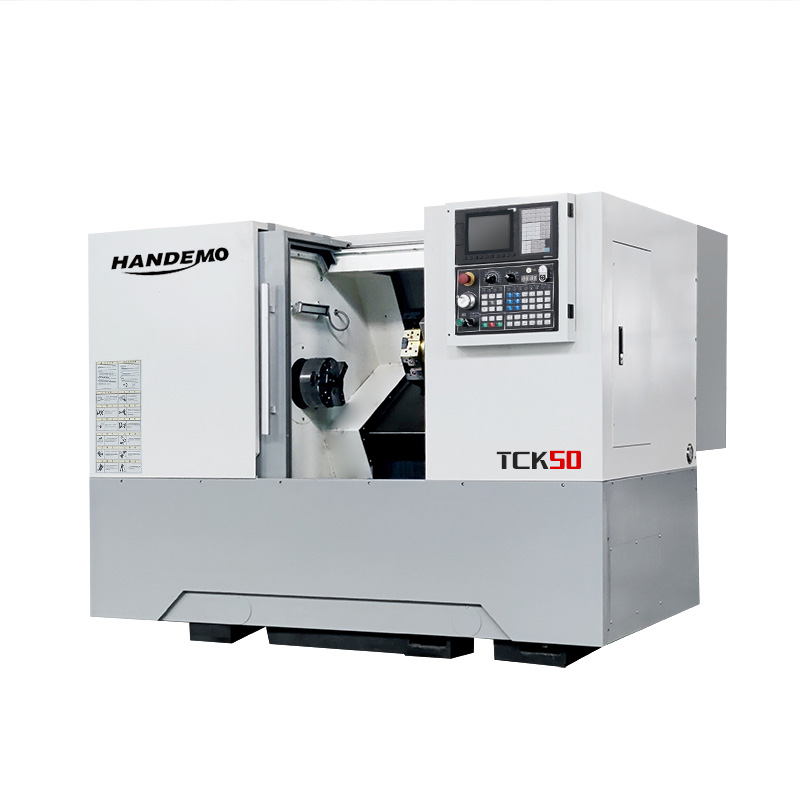

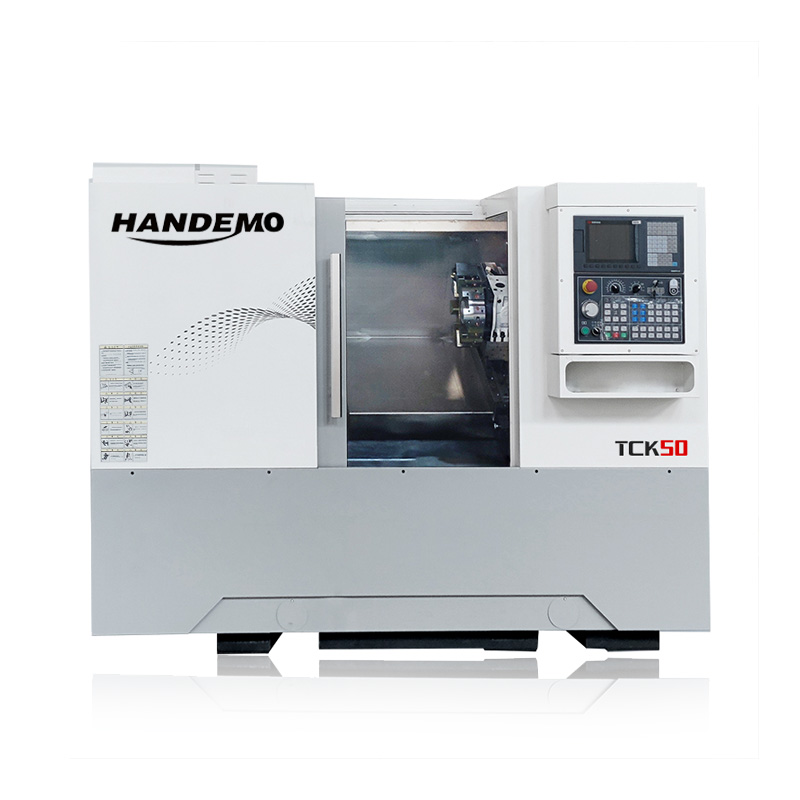

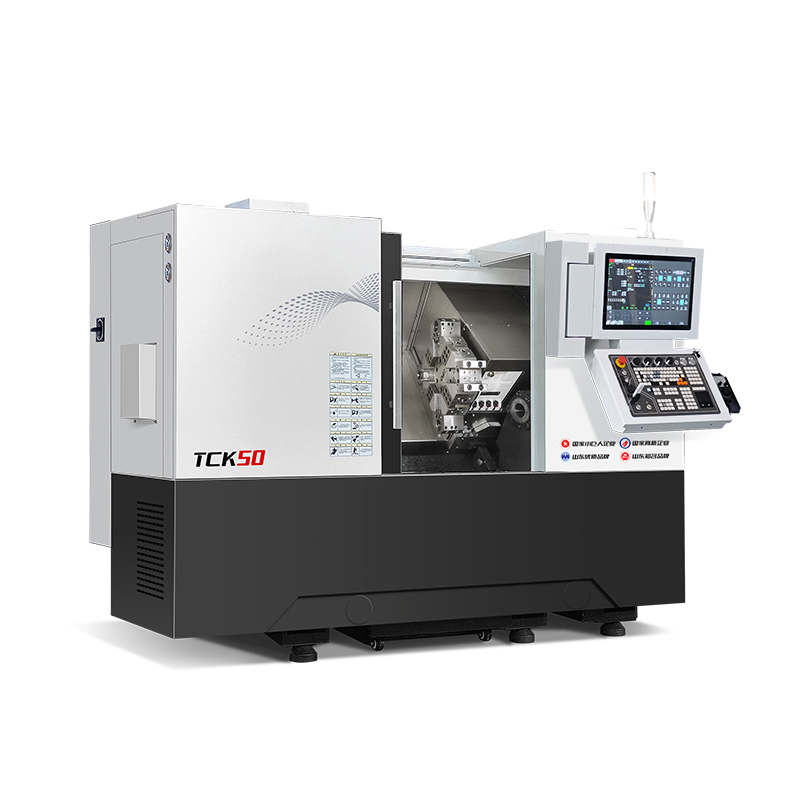

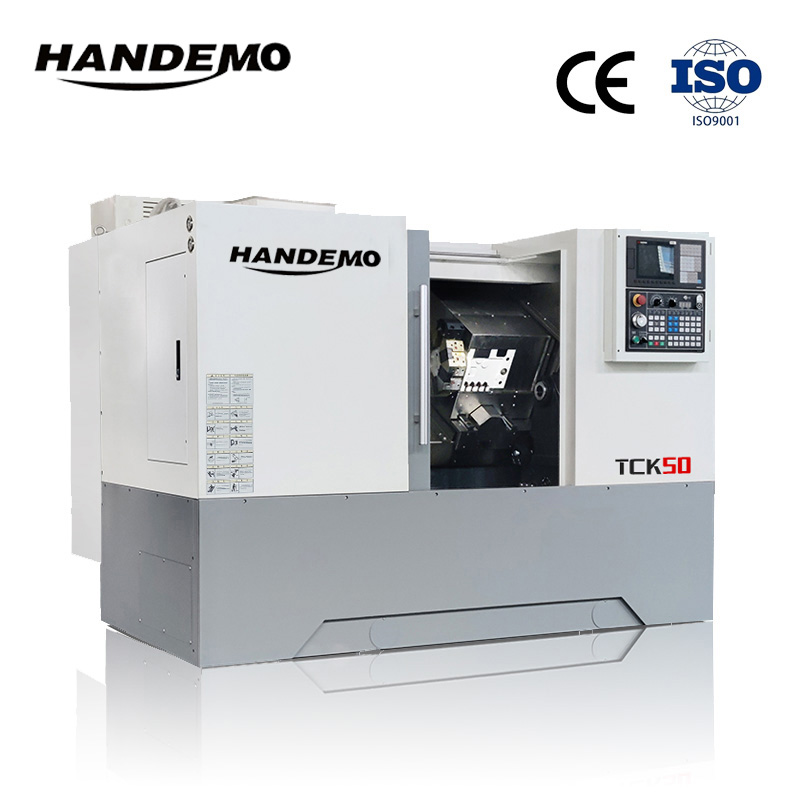

TCK50 CNC Slant Bed Lathe

CNC Slant Bed Lathe / General-Purpose High-Efficiency Model

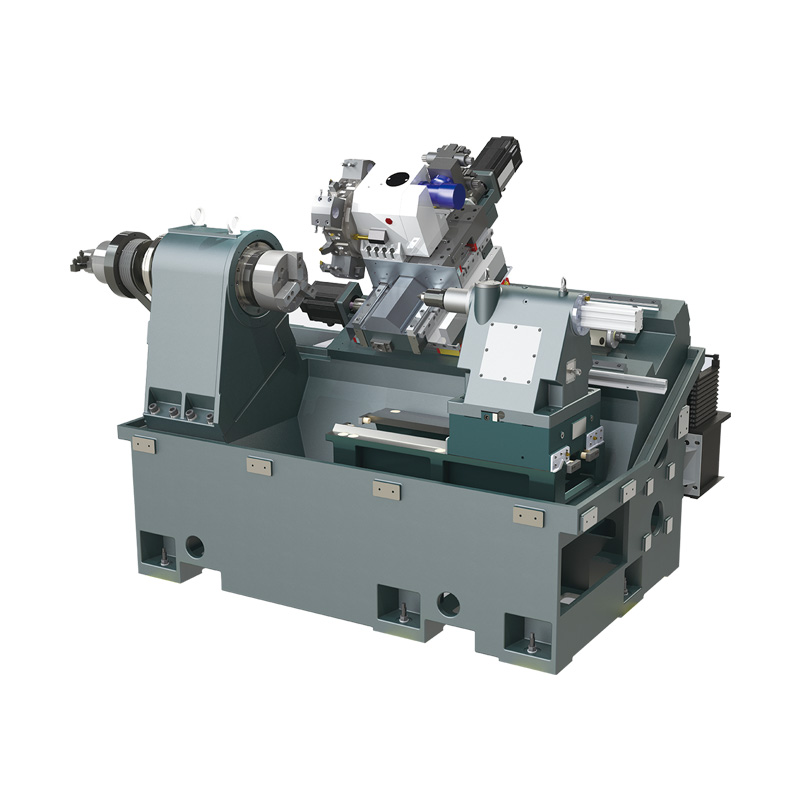

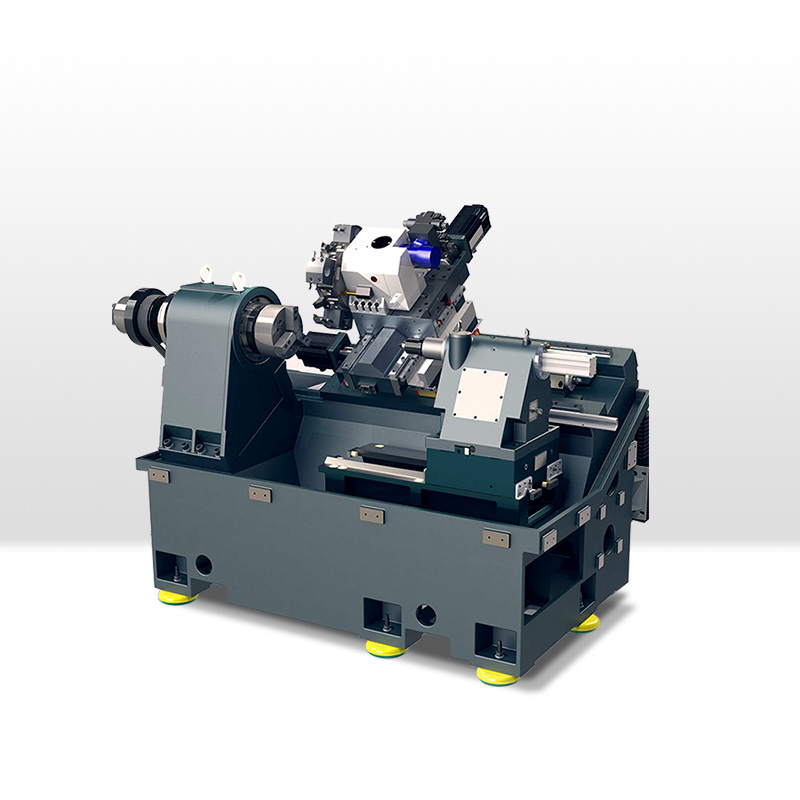

*30 ° Slant bed for convenient chip removal
*Small footprint, saving land costs

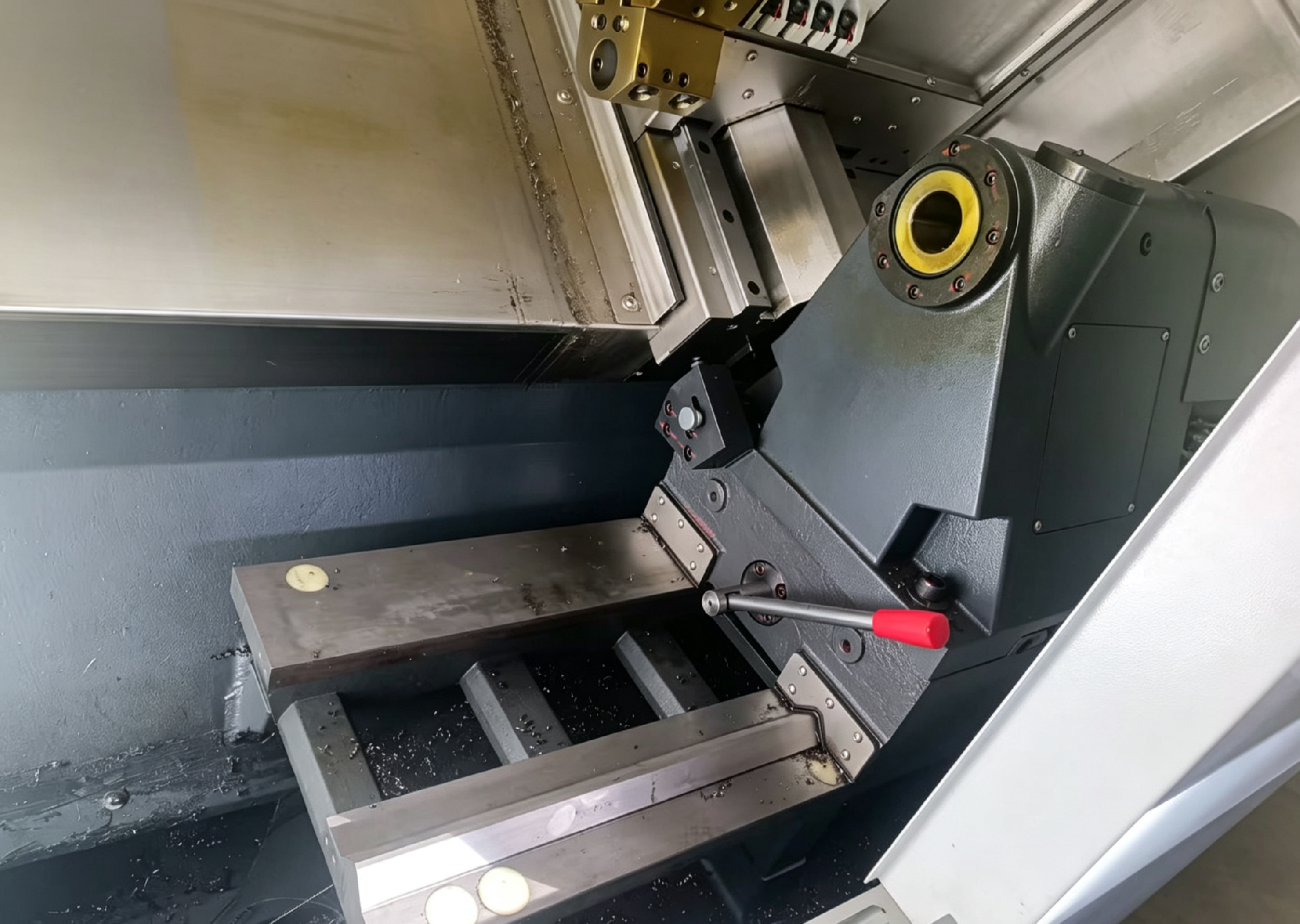

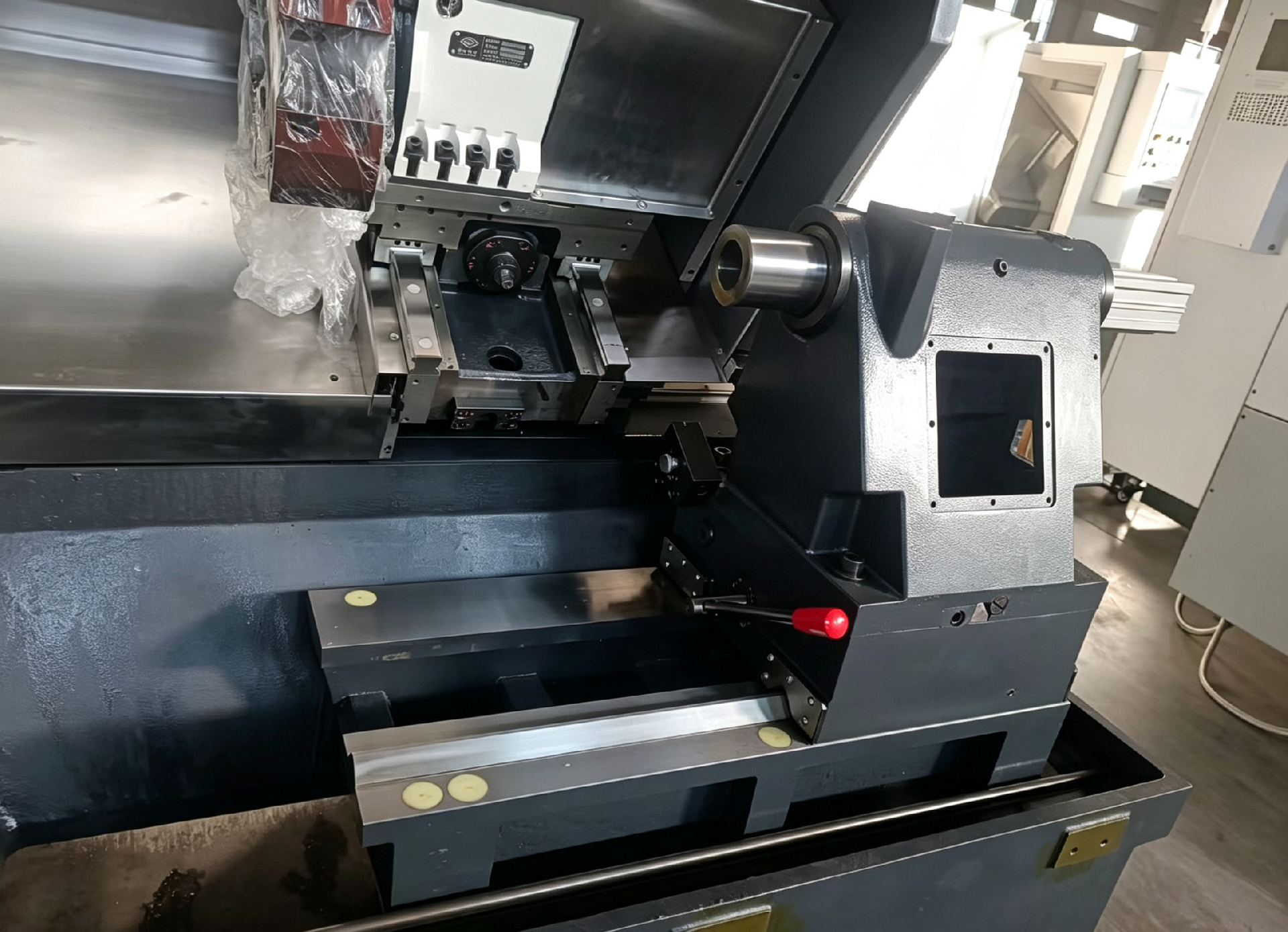

*Hard rail tailstock for more stable processing

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Parameters

Speicifications	TCK50	TCK50S
Max. turning diameter on bed(mm)	500	560
Max. cutting length(mm)	500	550
Max. cutting diameter(mm)	360	500
Standard cutting diameter(mm)	240	-
Max. turning diameter on the skateboard(mm)	300	400
Spindle nose type	A2-6	A2-6
Main shaft hole diameter(mm)	65	65
Max. over bar diameter(mm)	50	50
Spindle speed range（r/min）	4500	4500
Spindle motor power（KW）	15	15
Chuck type（inch）	8	8
X-axis Fast shift speed(m/min)	30	15
Z-axis Fast shift speed(m/min)	30	15
X-axis travel(mm)	200	280
Z-axis travel(mm)	550	670
Tailseat travel(mm)	450	600
Tailstock sleeve stroke(mm)	100	-
Tailstock sleeve cone hole taper (Mohs)	5#	5#

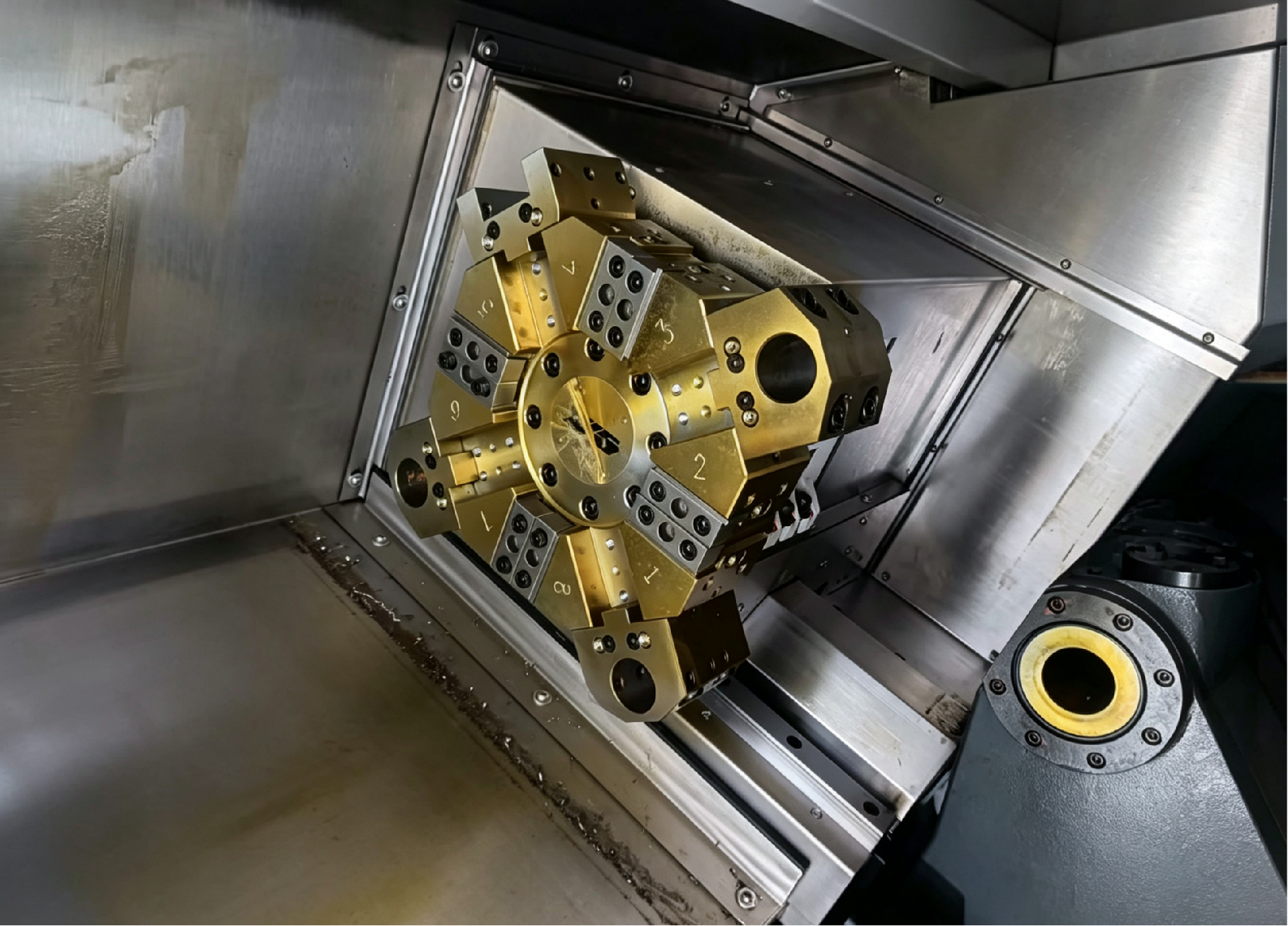

Standard knife holder form	Horizontal 8 station	Horizontal 12 station
Machine size (mm)	2300L1700W1930H	3240L1940W1965H
Machine weight (KG)	3600	3700
X-axis Positioning Accuracy (mm)	0.008	-
Y-axis Positioning Accuracy (mm)	0.007	-
Z-axis Positioning Accuracy (mm)	0.002	-
