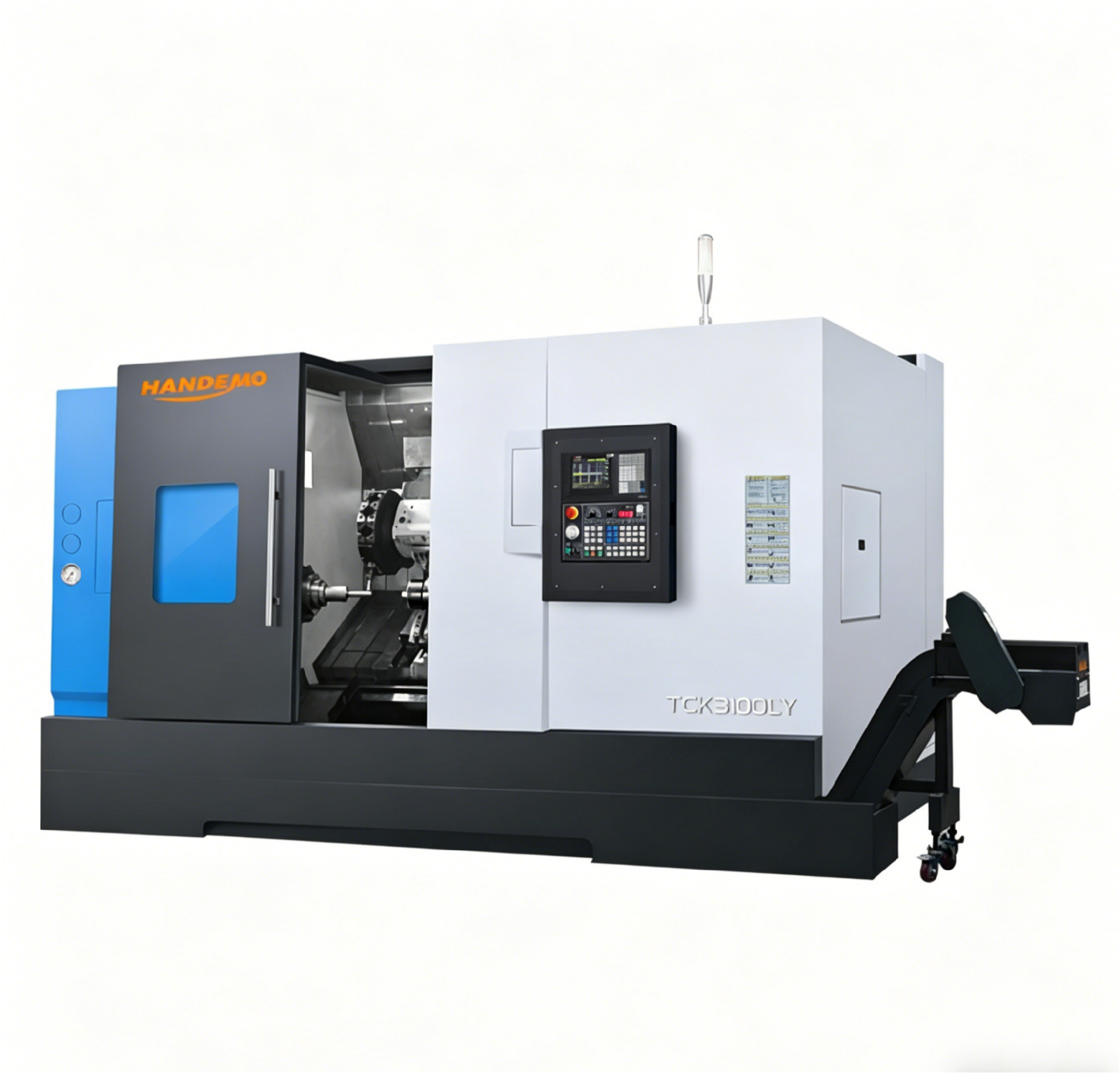

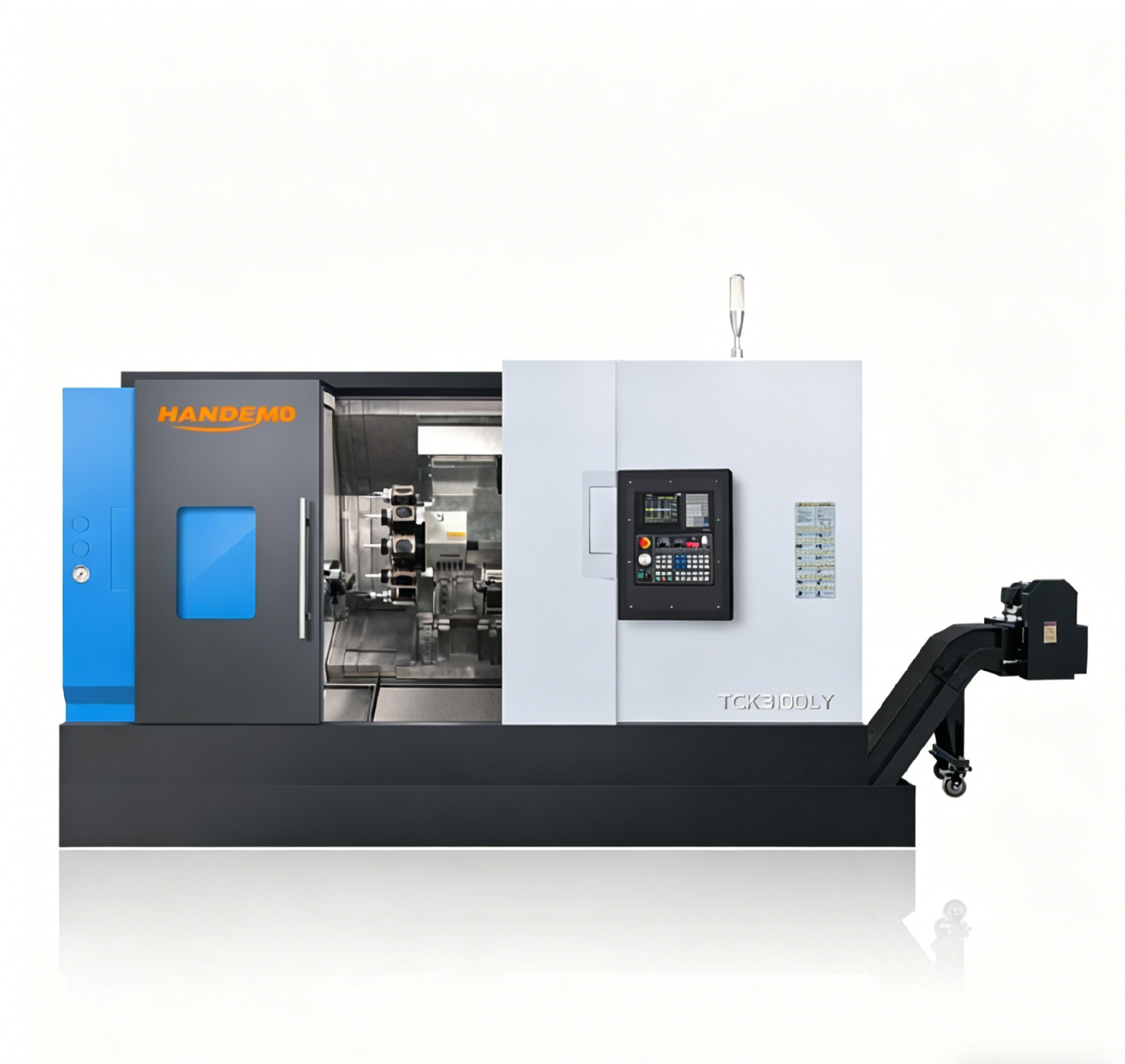

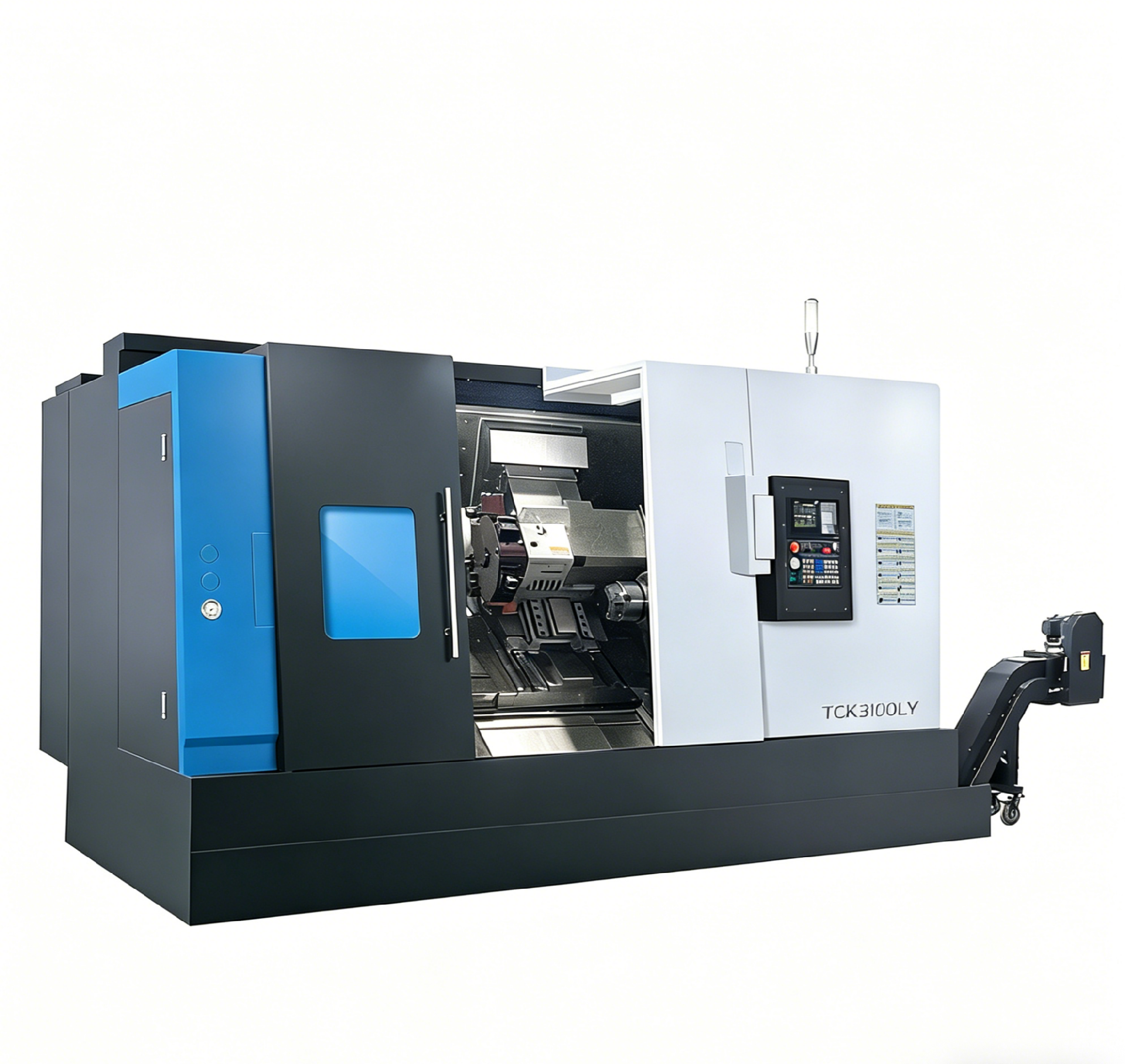

TCK3100LY CNC Mill-Turn Machine

CNC Mill-Turn Machines / Y-axis Turning And Milling Combination

*Max. swing over bed 750 mm, max turning length 1000 mm, max turning diameter 500 mm, standard turning diameter 380 mm, swing over cross slide 400 mm
*Spindle nose type A2-8, spindle bore 85 mm, max bar capacity 75 mm
*X-axis travel 400 mm, Z-axis travel 1050 mm, Y-axis travel ±100 mm, X/Y/Z rapid traverse 12/12/16 m/min
*Approx. gross weight 8000 kg

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	TCK3100LY
Max. swing over bed(mm)	750
Max. turning length(mm)	1000
Max. turning diameter(mm)	500
Standard turning diameter(mm)	380
Max. swing over cross slide(mm)	400
Spindle nose type / code	A2-8
Spindle bore diameter(mm)	85
Max. bar capacity(mm)	75
X-axis rapid traverse(m/min)	12
Y-axis rapid traverse(m/min)	12
Z-axis rapid traverse(m/min)	16
X-axis travel(mm)	400
Z-axis travel(mm)	1050
Y-axis travel(mm)	±100
Approx. gross weight(KG)	8000
