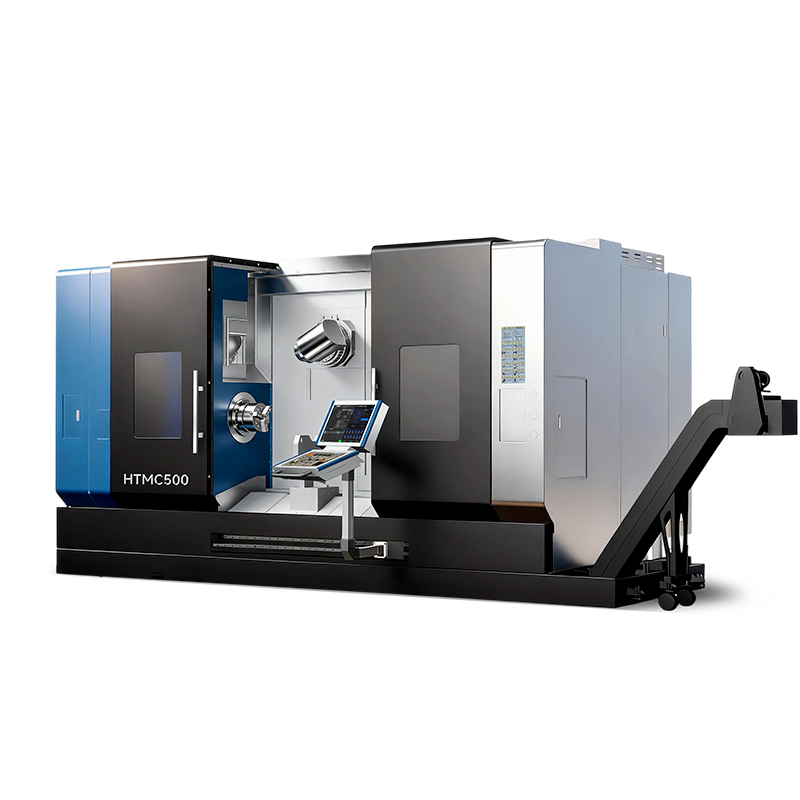

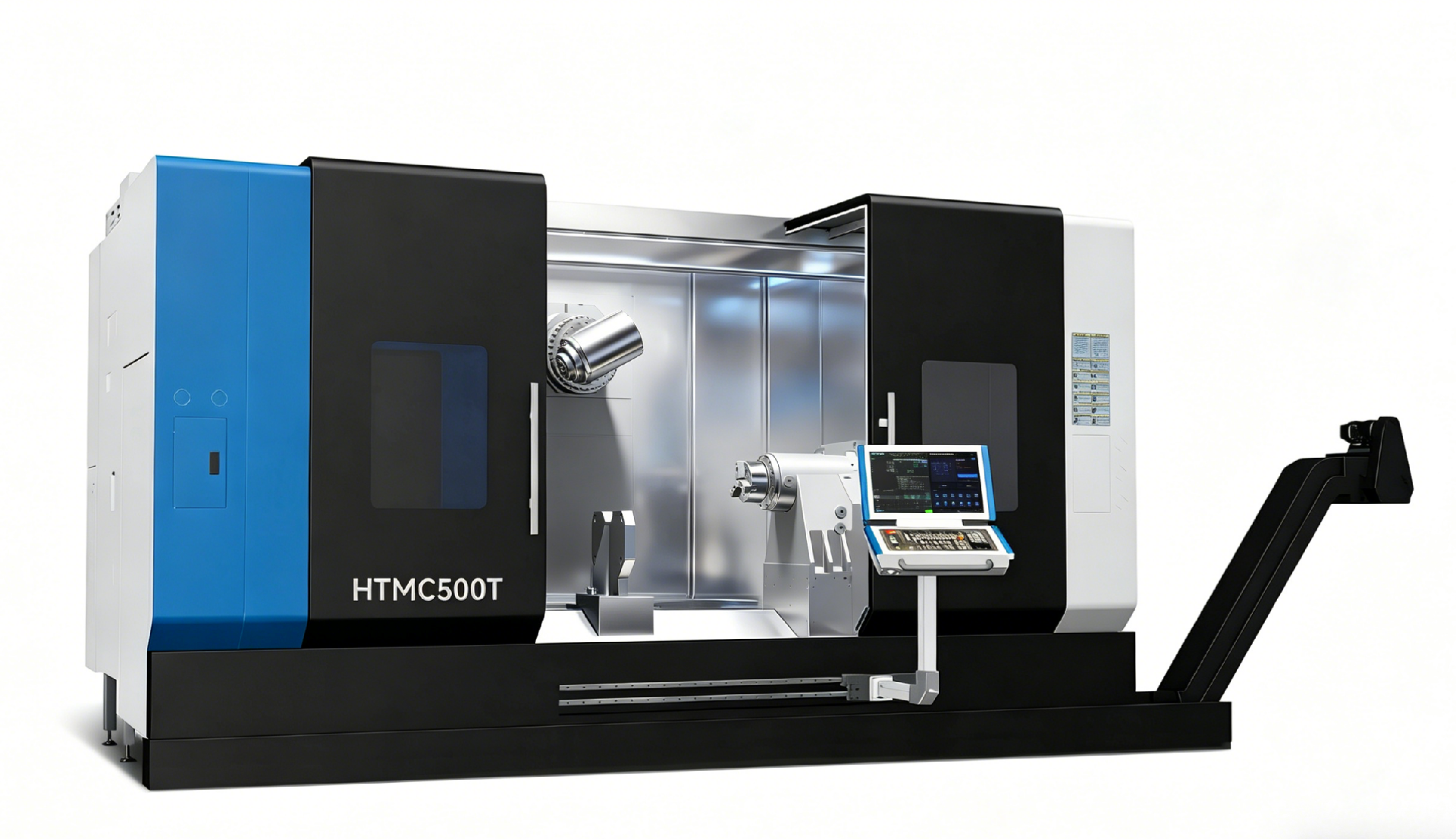

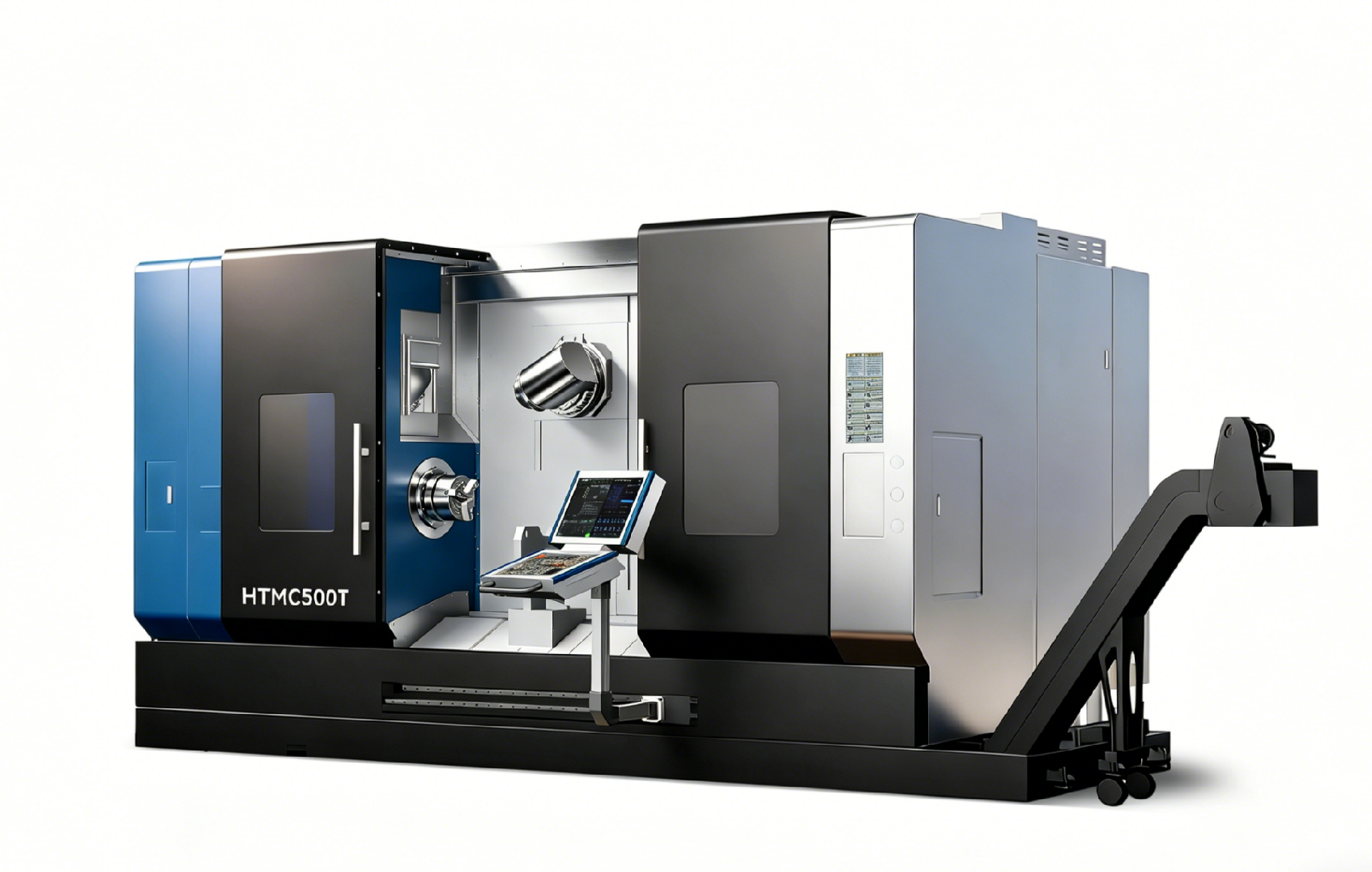

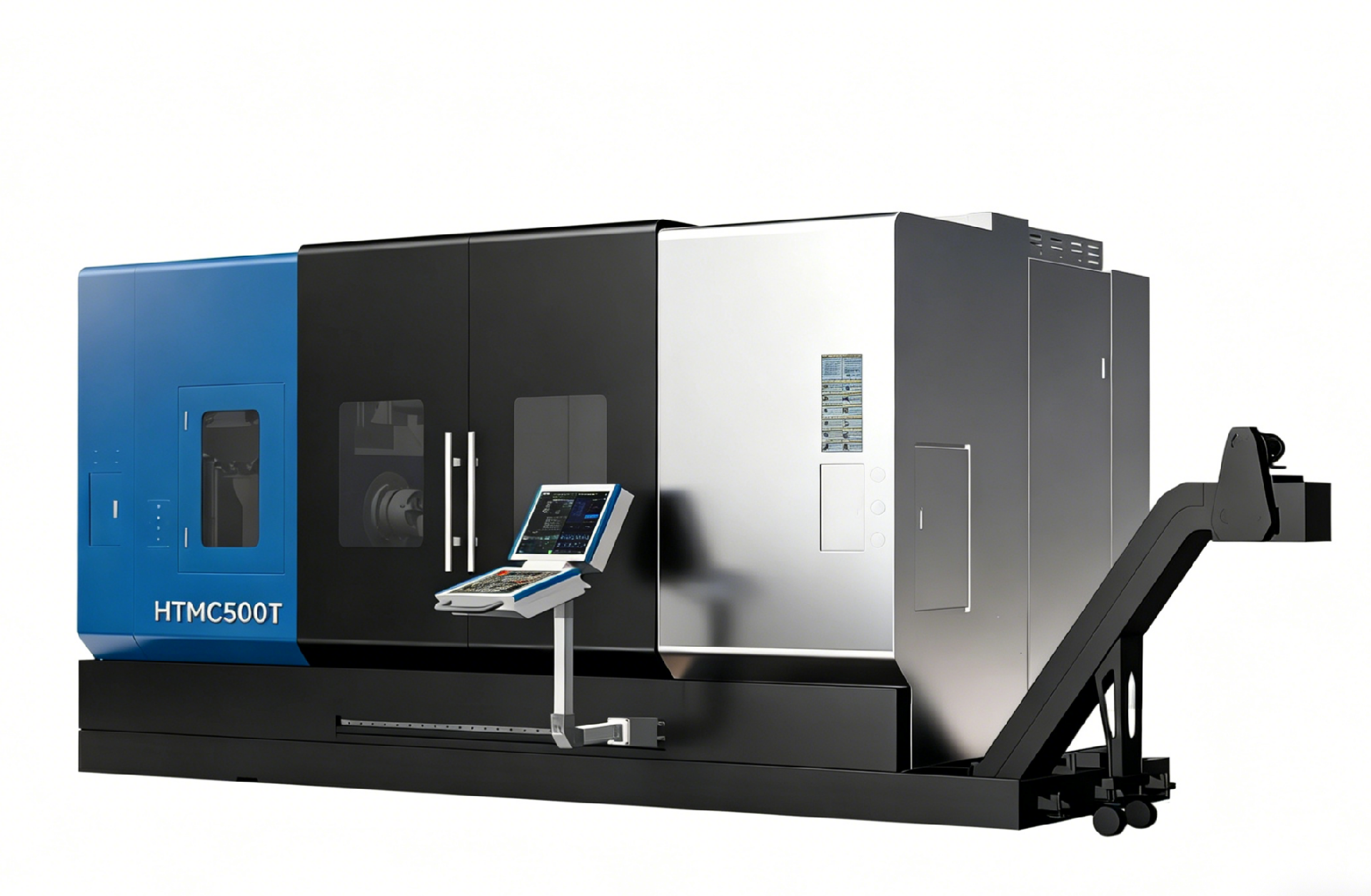

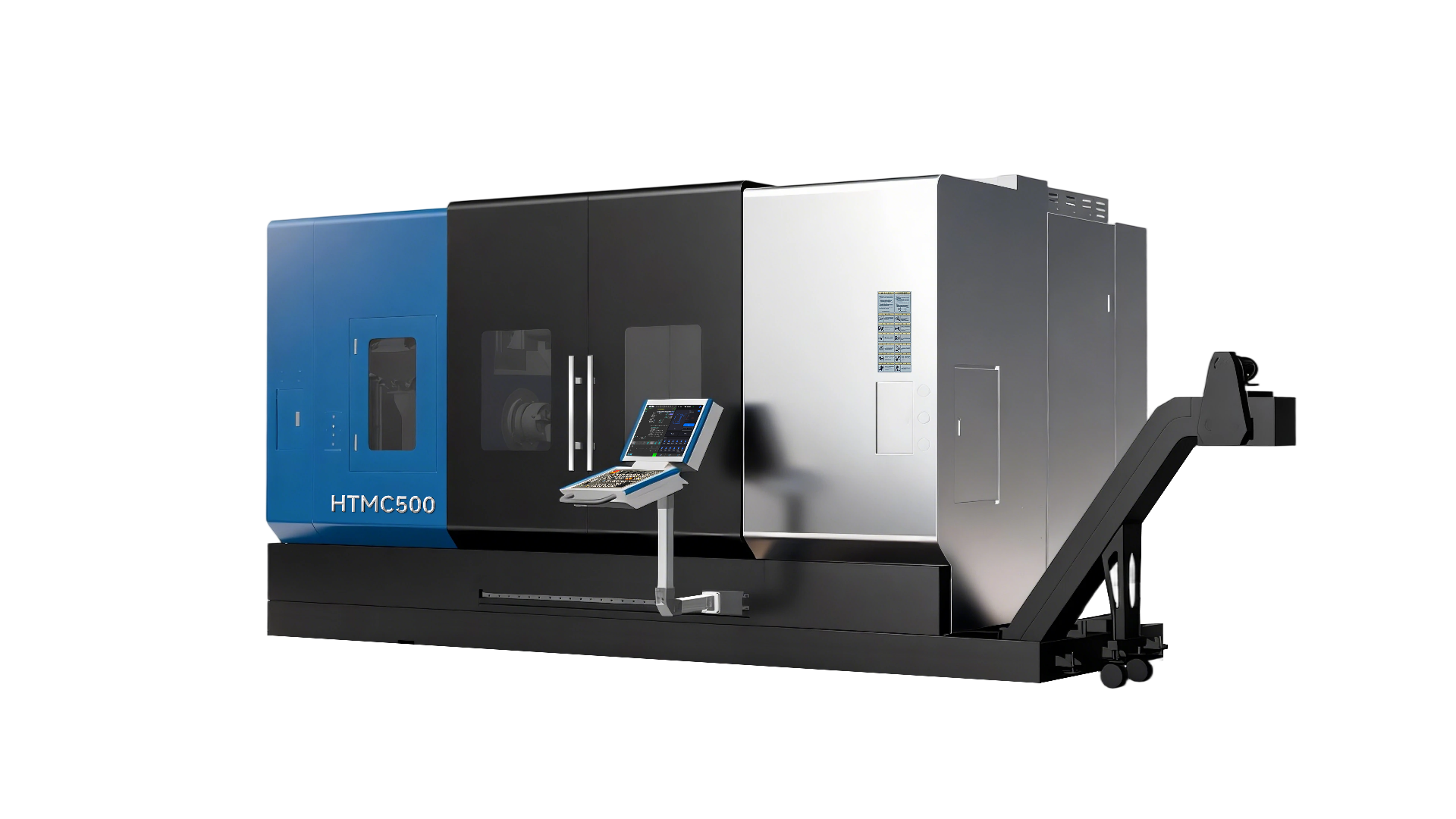

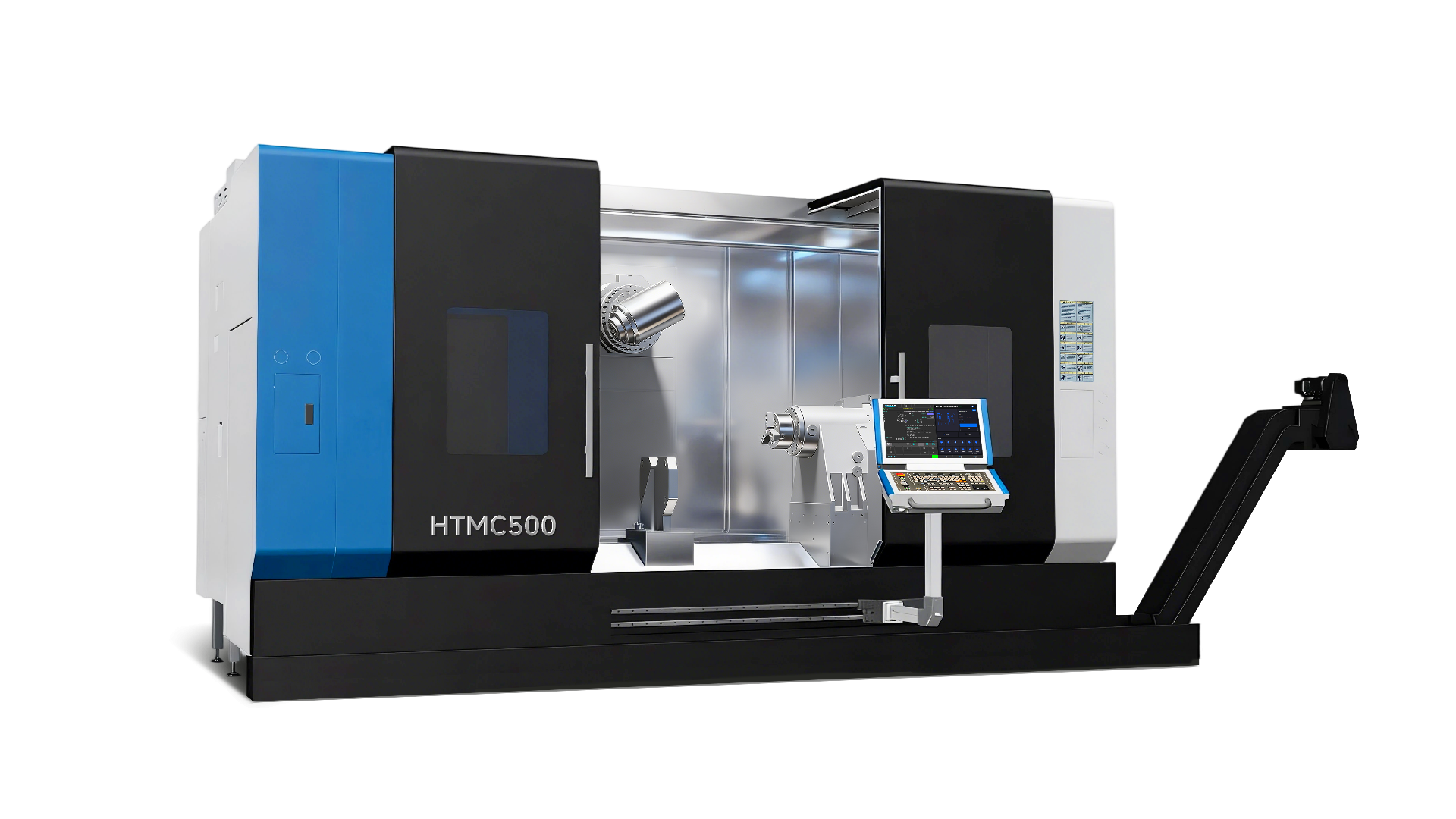

HTMC500T CNC Mill-Turn Machine

CNC Mill-Turn Machines / 5-axis Turning And Milling

*Max. swing over bed 700 mm, max turning length 1250 mm, max turning diameter 500 mm, max swing over cross slide 700 mm
*Spindle nose type A2-8, spindle bore 86 mm, max bar capacity 75 mm
*X-axis travel 700 mm, Z-axis travel 1400 mm, Y-axis travel ±125 mm, X/Y/Z rapid traverse 12/12/12 m/min
*Machine dimensions 6900×3800×2900 mm, approx. gross weight 14000 kg

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	HTMC500T
Max. swing over bed(mm)	700
Max. turning length(mm)	1250
Max. turning diameter(mm)	500
Max. swing over cross slide(mm)	700
Spindle nose type / code	A2-8
Spindle bore diameter(mm)	86
Max. bar capacity(mm)	75
X-axis rapid traverse(m/min)	12
Z-axis rapid traverse(m/min)	12
Y-axis rapid traverse(m/min)	12
Y‑axis travel(mm)	±125
X-axis travel(mm)	700
Z-axis travel(mm)	1400
Machine dimensions(mm)	6900L× 3800W× 2900H
Approx. gross weight（KG)	14000
