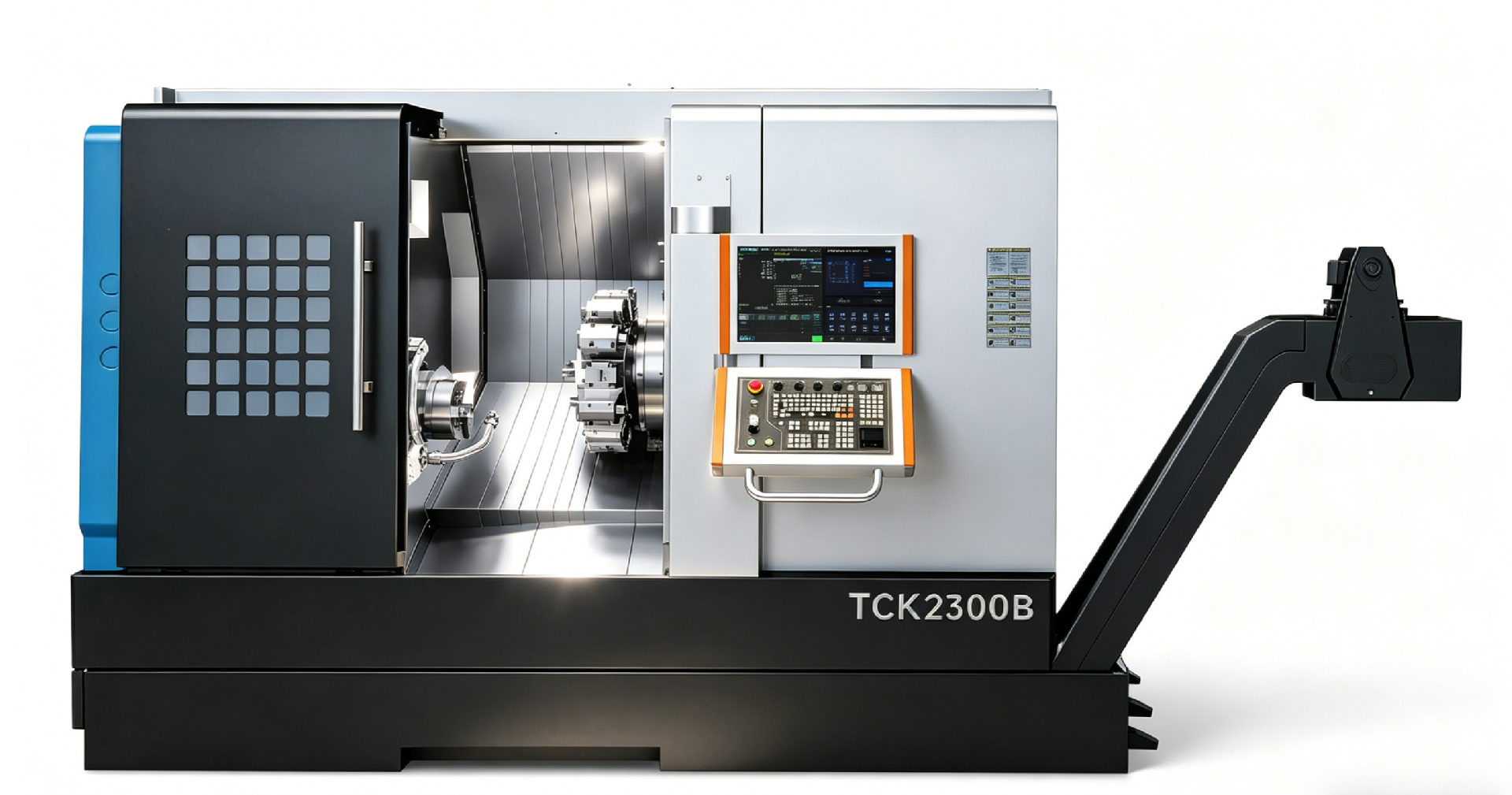

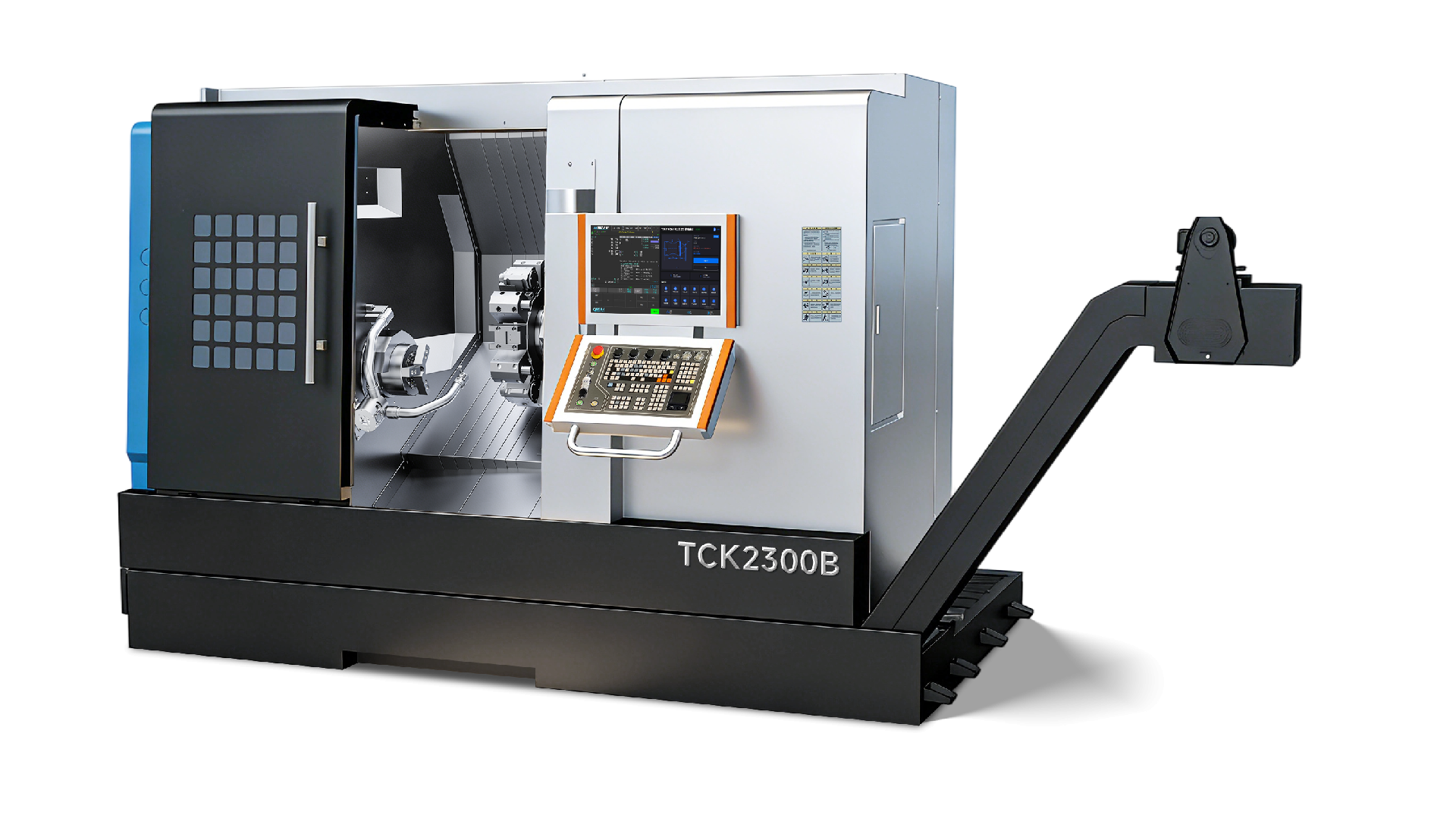

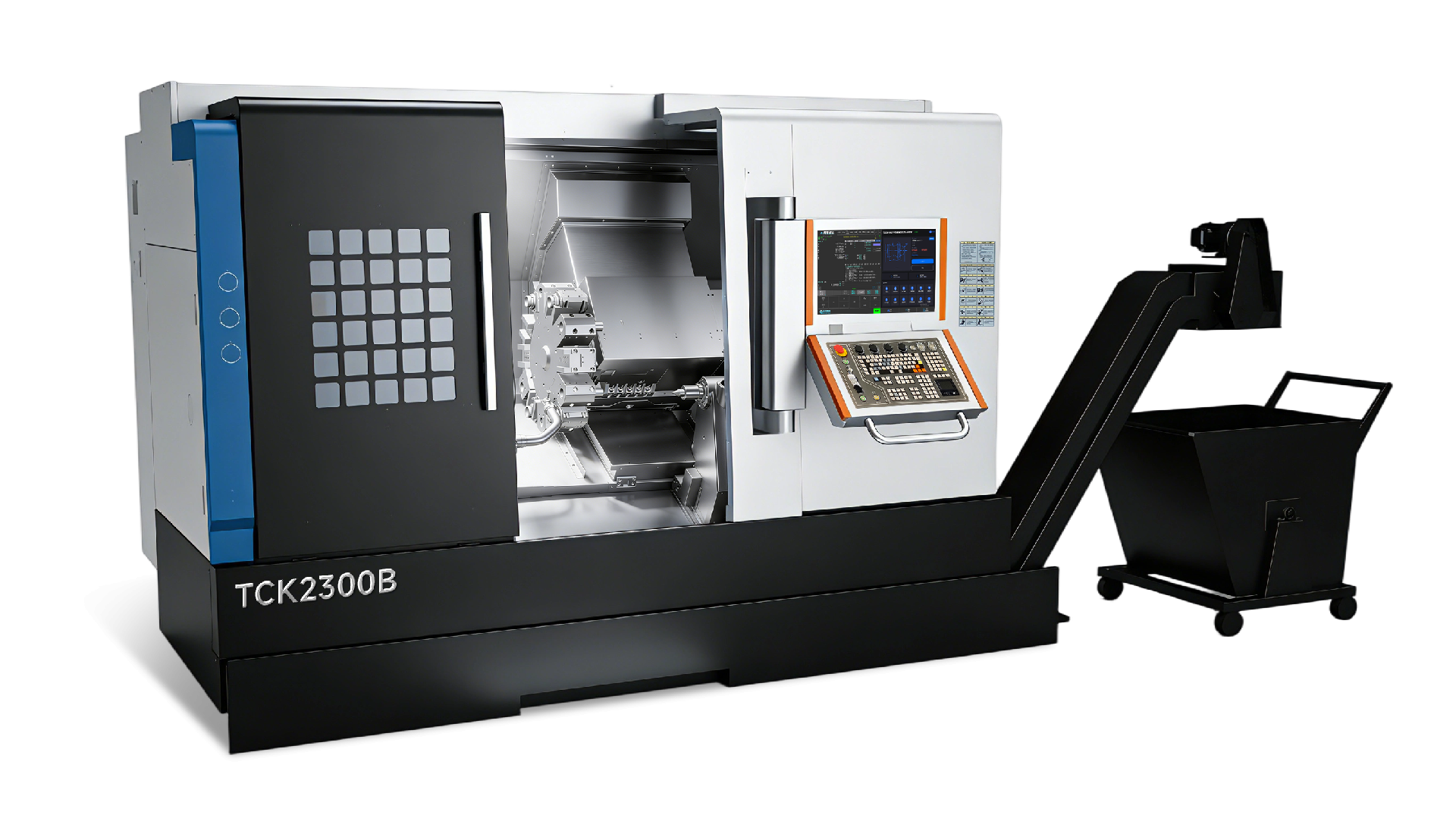

TCK2300B CNC Mill-Turn Machine

CNC Mill-Turn Machines / Y-axis Turning And Milling Combination

*Max. swing over bed 700 mm, max turning length 500 mm, max turning diameter 400 mm, max swing over cross slide 400 mm
*Spindle nose type 400, spindle bore 65 mm, max bar capacity 50 mm
*X-axis travel 240 mm, Z-axis travel 500 mm, Y-axis travel ±60 mm, X/Z rapid traverse 20/20 m/min, Y rapid traverse 10 m/min
*Standard tool post: Horizontal 12-station live tool turret

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	TCK2300B
Max. swing over bed(mm)	700
Max. turning length(mm)	500
Max. turning diameter(mm)	400
Max. swing over cross slide(mm)	400
Spindle nose type / code	A2-6
Spindle bore diameter(mm)	65
Max. bar capacity(mm)	50
X-axis rapid traverse(m/min)	20
Z-axis rapid traverse(m/min)	20
Y-axis rapid traverse(m/min)	10
Y‑axis travel(mm)	±60
X-axis travel(mm)	240
Z-axis travel(mm)	500
Standard tool post type	Horizontal 12‑station live tool turret
