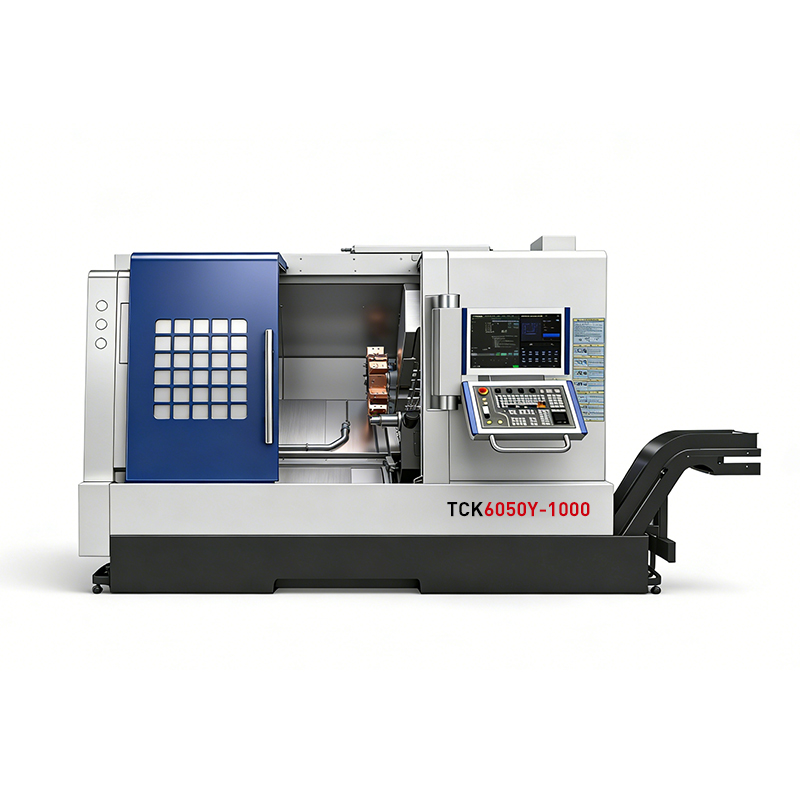

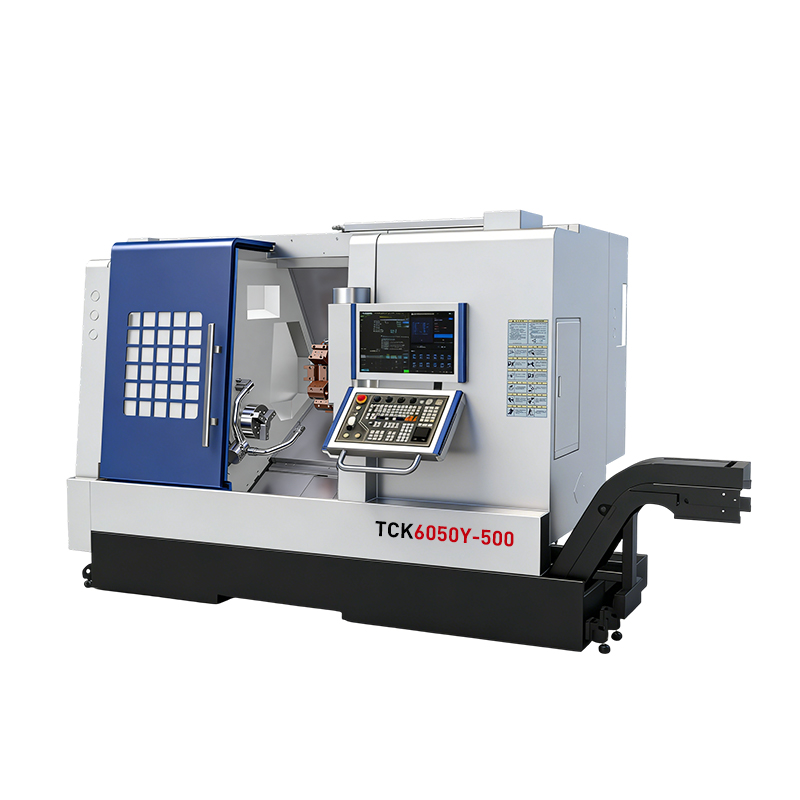

TCK6050Y CNC Mill-Turn Machine

CNC Mill-Turn Machines / Power Turret Y-Axis Turning And Milling Center

*Max. swing over bed 560 mm, max turning length 980 mm, max turning diameter 410 mm, swing over cross slide 400 mm, standard turning diameter 300 mm
*Spindle nose type A2-6, spindle bore 65 mm, max bar capacity 50 mm
*X-axis travel 280 mm, Z-axis travel 1130 mm, Y-axis travel ±50 mm, X/Z rapid traverse 15/15 m/min
*Tailstock travel 900 mm, tailstock quill stroke 100 mm

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	TCK6050Y-500	TCK6050Y-1500
Max. swing over bed(mm)	560	560
Max. turning length(mm)	500	980
Max. turning diameter(mm)	410	410
Max. swing over cross slide(mm)	400	400
Standard turning diameter(mm)	300	300
Spindle nose type / code	A2-6	A2-6
Spindle bore diameter(mm)	65	65
Max. bar capacity(mm)	50	50
X-axis rapid traverse(m/min)	15	15
Z-axis rapid traverse(m/min)	15	15
Y‑axis travel(mm)	±50	±50
X-axis travel(mm)	280	280
Z-axis travel(mm)	630	1130
Tailstock travel(mm)	450	900
Tailstock quill stroke(mm)	100	100
