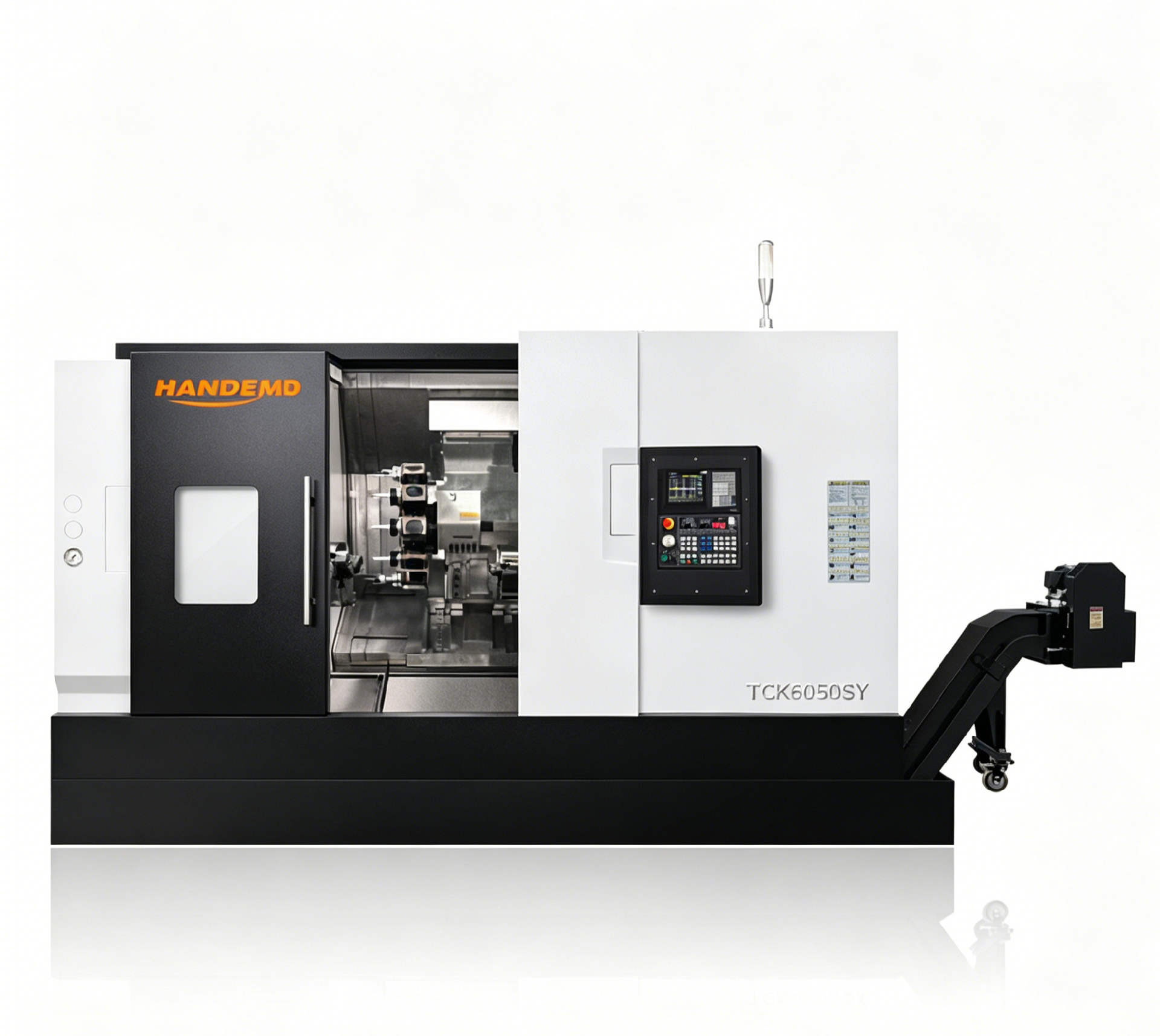

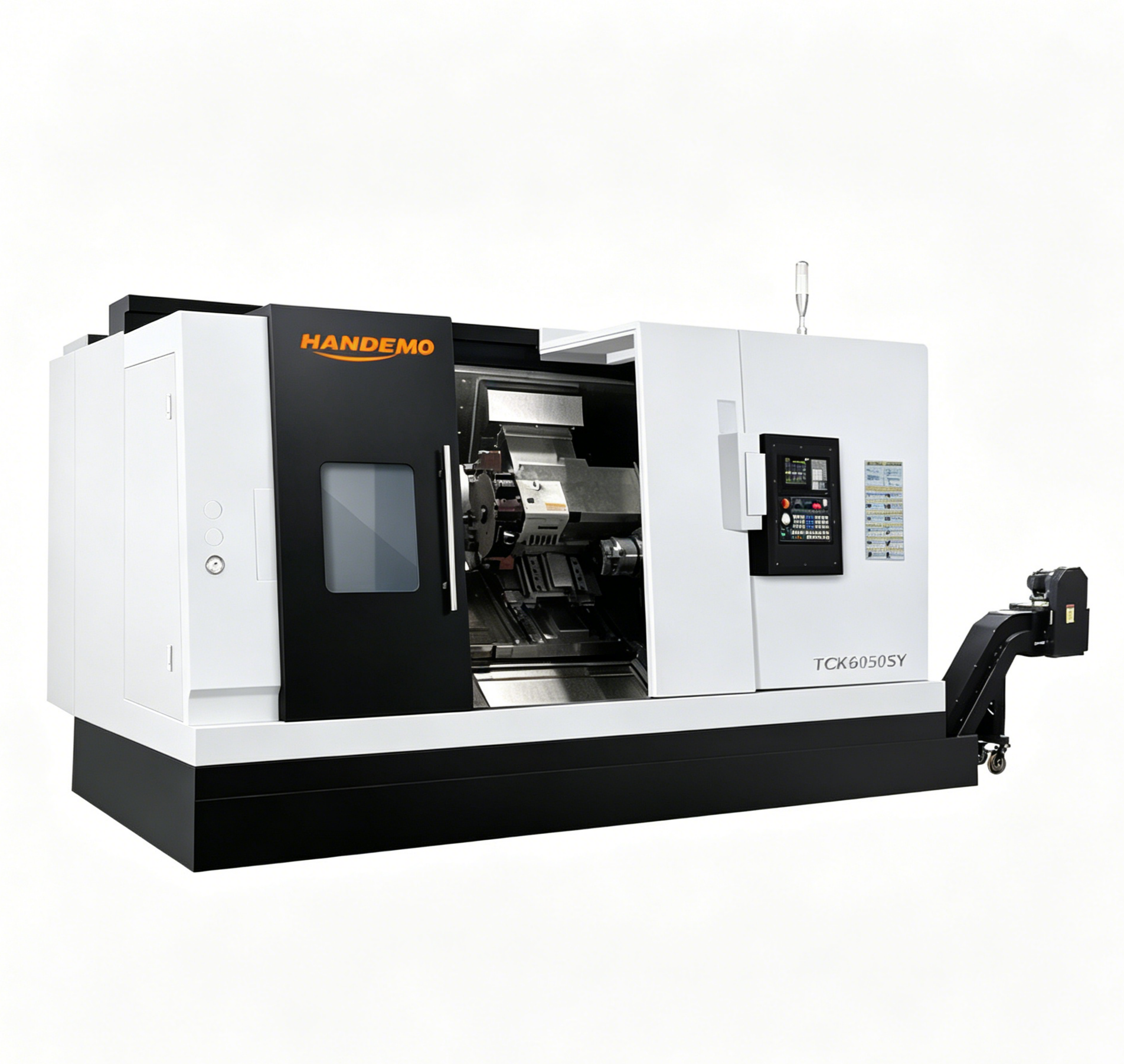

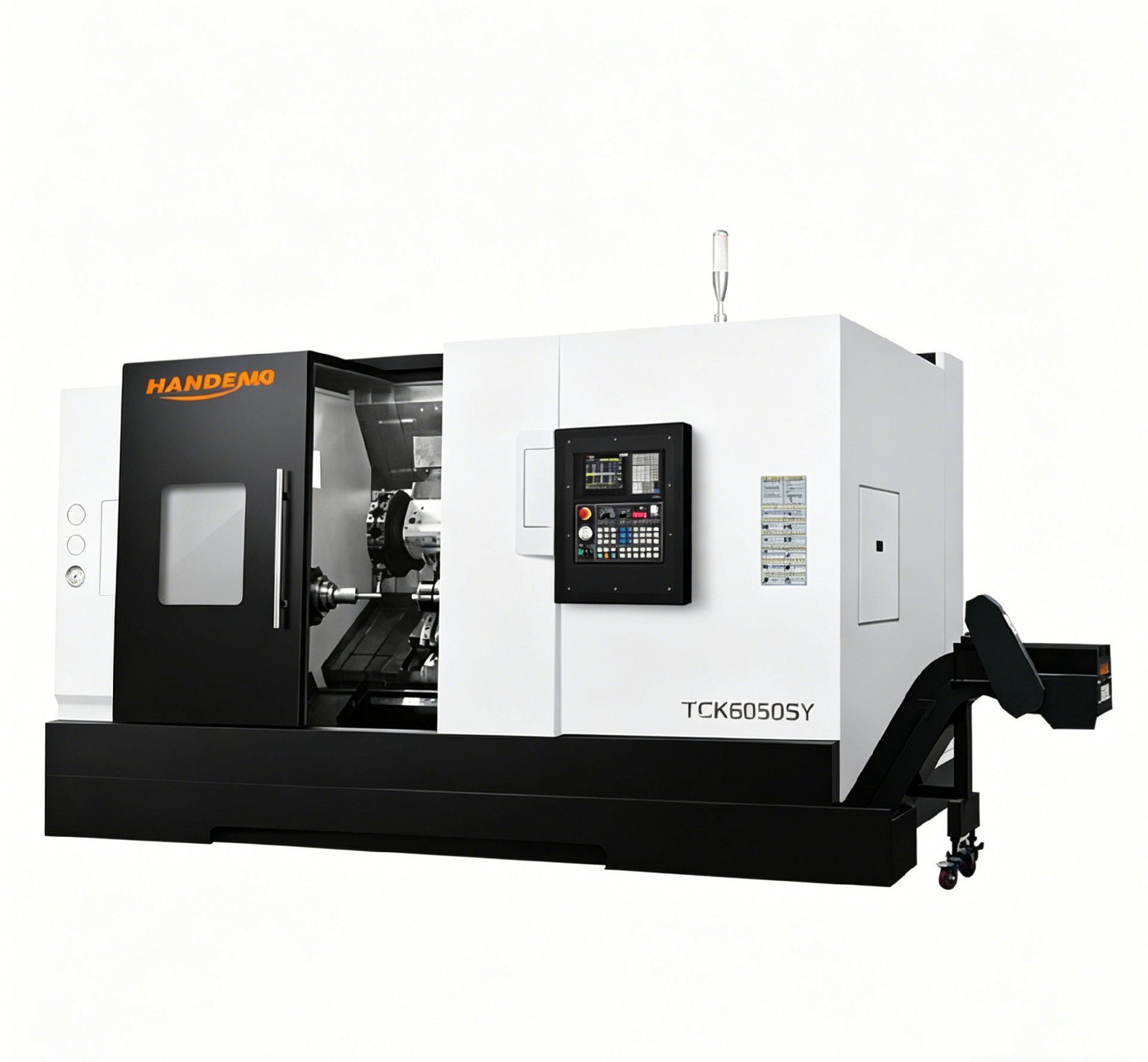

TCK6050SY CNC Mill-Turn Machine

CNC Mill-Turn Machines / Dual-spindle

*Max. swing over bed 600 mm, max turning length 450 mm, max turning diameter 400 mm, swing over cross slide 330 mm, standard turning diameter 300 mm
*Spindle1: A2-6, bore 67 mm, bar capacity 50 mm, speed range 50~4000 r/min, power 18.5 kW
*Spindle2: A2-5, bore 56 mm, bar capacity 45 mm, speed range 50~4000 r/min
*X-axis travel 230 mm, Z-axis travel 450 mm, Y-axis travel ±50 mm, X/Y/Z rapid traverse 20/20/10 m/min
*Machine dimensions 3307×1912×2250 mm

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	TCK6050SY
Max. swing over bed(mm)	600
Max. turning length(mm)	450
Max. turning diameter(mm)	400
Max. swing over cross slide(mm)	330
Standard turning diameter(mm)	300
Spindle1 nose type	A2-6
Spindle1 bore diameter(mm)	67
Bar capacity(mm)	50
Spindle speed range(r/min)	50~4000
Spindle motor output power(kW)	18.5
Spindle2 nose type	A2-5
Spindle2 bore diameter(mm)	56
Bar capacity(mm)	45
Spindle speed range(r/min)	50~4000
X-axis rapid traverse(m/min)	20
Y-axis rapid traverse(m/min)	20
Z-axis rapid traverse(m/min)	10
Y‑axis travel(mm)	±50
X-axis travel(mm)	230
Z-axis travel(mm)	450
Machine dimensions(KG)	3307L× 1912W× 2250H
