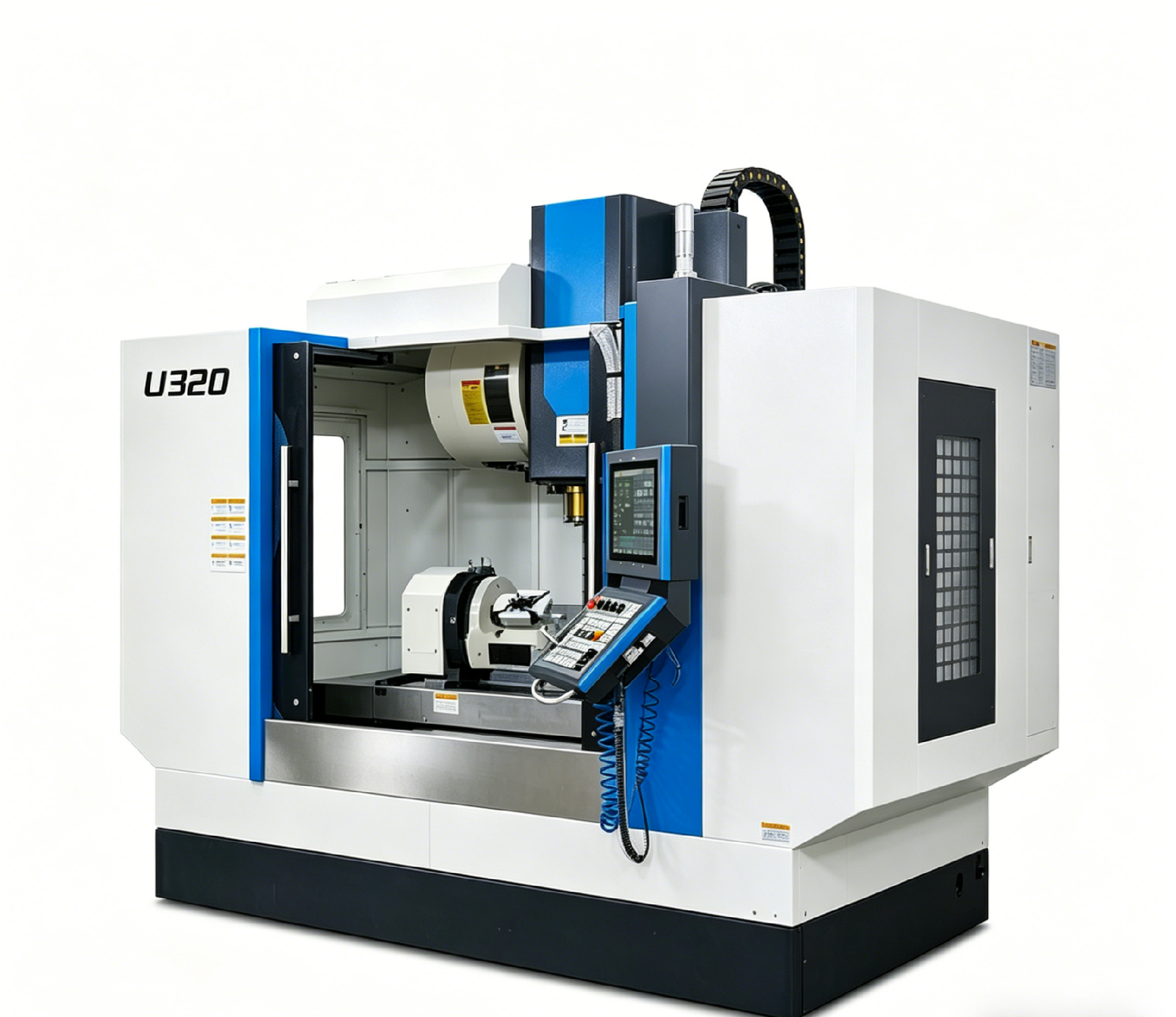

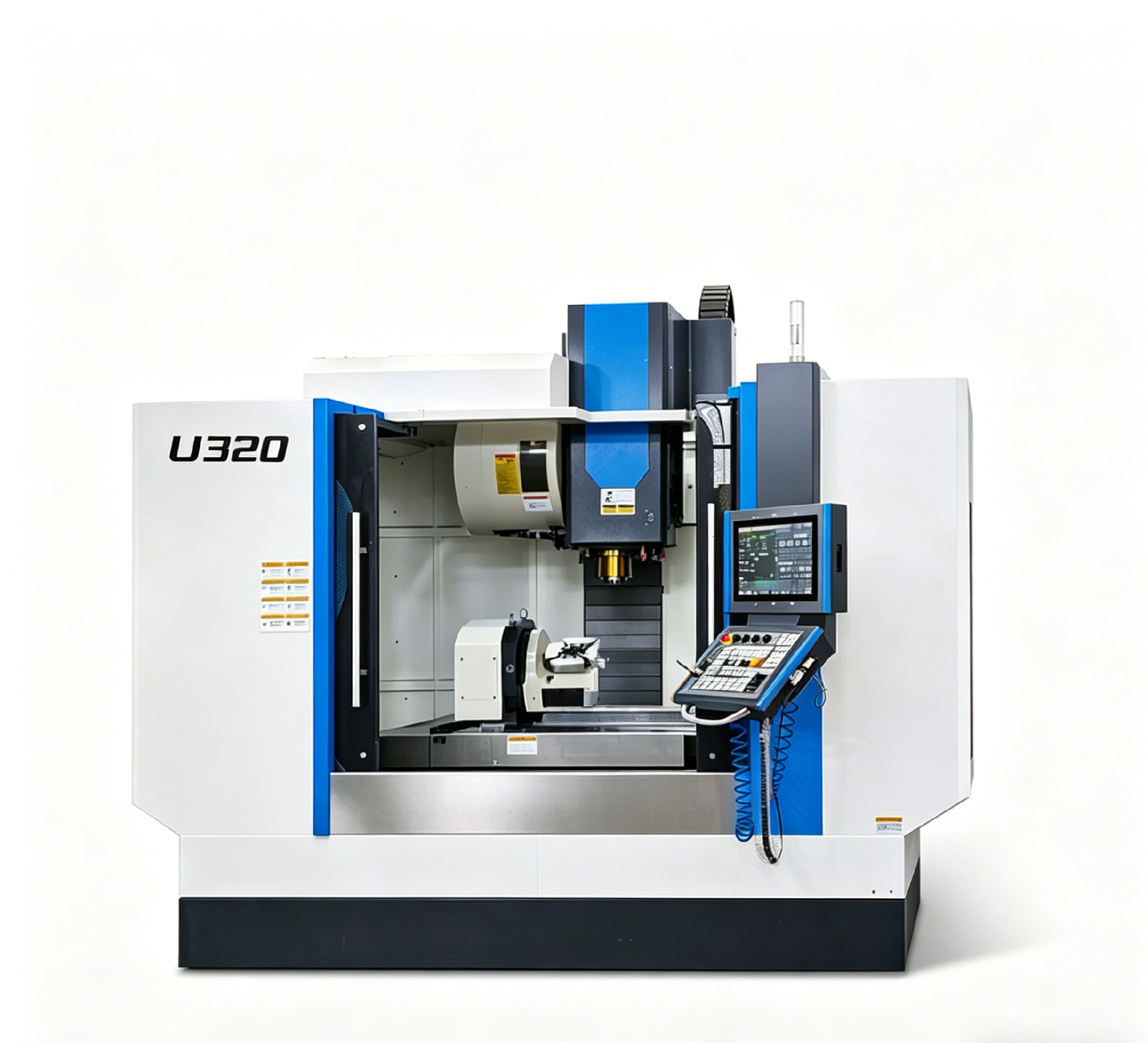

U320 5-Axis Turning and Milling Machine

5-Axis Turning and Milling Machine / Compact 5-axis Machining Center
*X/Y/Z axis travel: 1100/650/650 mm, machining range 480×325 mm
*Rotary table with dual direct drive, mounting flange diameter Φ320 mm, center hole Φ40 mm, max load 150 kg, diameter 150 mm
*Direct-drive mechanical spindle, max speed 12000 rpm
Request A Quote Download Brochure
Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Machine model: U320

1.1 X-axis travel: 1100mm

1.2 Y-axis travel: 650mm

1.3 Z-axis travel: 650mm

1.4 Machining range: 480*325


Rotary table (dual direct drive)

2.1 Mounting flange diameter: Φ320

2.2 Center hole / through hole diameter: Φ40

2.3 Max load capacity: 150kg


2.4 Diameter：150mm


Direct-drive mechanical spindle

3.1 Max speed: 12000rpm

3.2 Output power: 11kW

3.3 Tool holder type: BBT40


Rapid traverse

4.1 X, Y, Z speed: 24m/min

4.2 A-axis speed: 80rpm

4.3 C-axis speed: 200rpm

Cutting feedrate

5.1 X, Y, Z speed:  10m/min

5.2 A-axis speed: 2000mm/min


5.3 C-axis speed:6000mm/min
