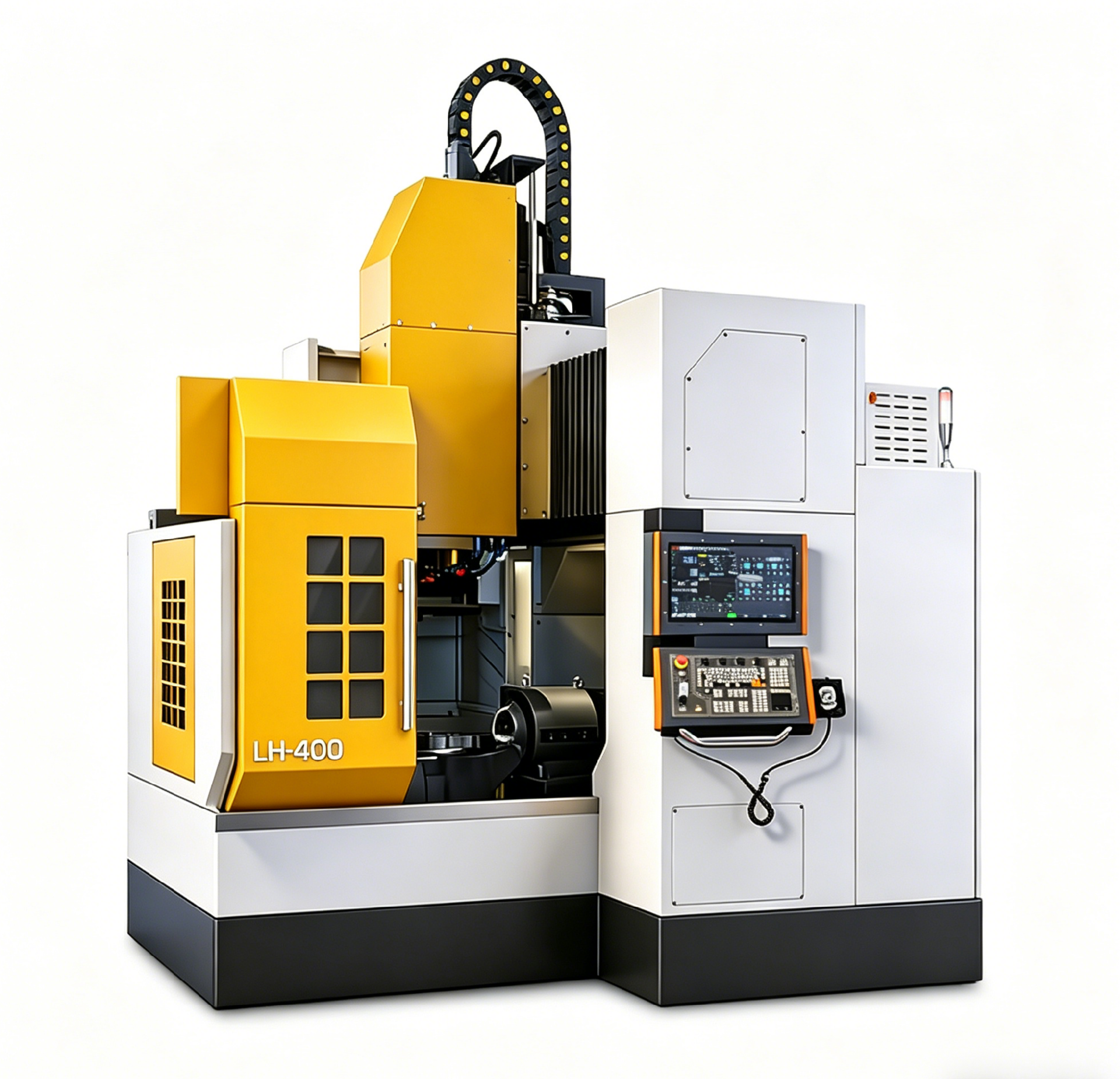

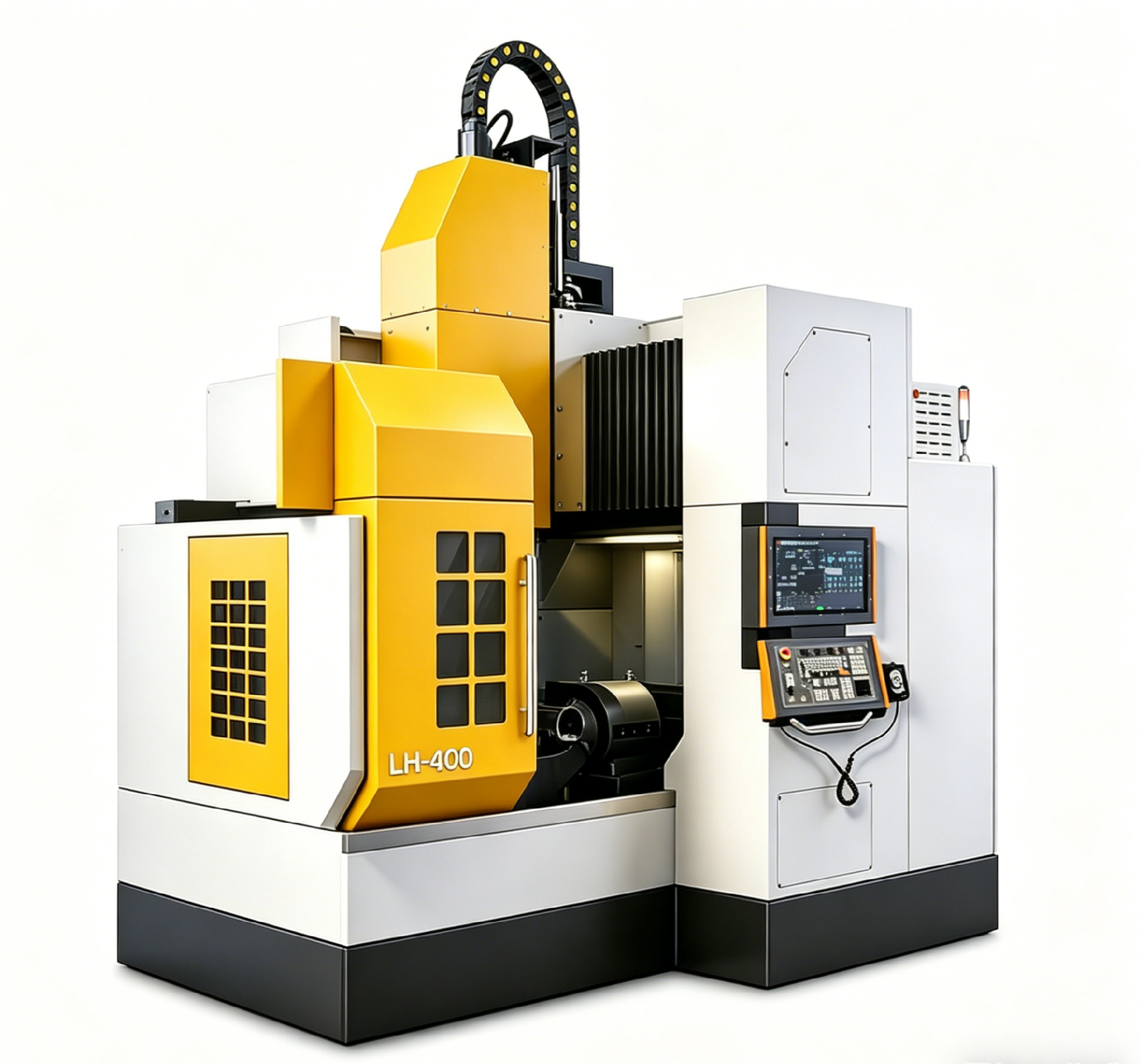

LH400 5-Axis Turning and Milling Machine
5-Axis Turning and Milling Machine / Heavy-duty Gantry-type
*Table size Φ400 mm, max. worktable load 200 kg
*Spindle taper hole BT40D, spindle speed 12000 rpm
*X/Y/Z axis travel: 600/1000/600 mm, X/Z rapid shift 15 m/min, Y rapid shift 12 m/min
*Machine size 3495×2829×4150 mm, machine weight 9000 kg
*Spindle taper hole BT40D, spindle speed 12000 rpm
*X/Y/Z axis travel: 600/1000/600 mm, X/Z rapid shift 15 m/min, Y rapid shift 12 m/min
*Machine size 3495×2829×4150 mm, machine weight 9000 kg
Technical Specifications
Product Details Parameters
Product Details
Product Parameters
| Speicifications | LH400 |
| Table size （mm） | Φ400 |
| Max. worktable load（kg） | 200 |
| X-axis travel(mm) | 600 |
| Y-axis travel(mm) | 1000 |
| Z-axis travel(mm) | 600 |
| X-axis Fast shift speed(m/min) | 15 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 15 |
| Spindle taper hole | BT40D |
| Spindle speed (rpm) | 12000 |
| Machine size (mm) | 3495L*2829W*4150H |
| Machine weight (KG) | 9000 |
