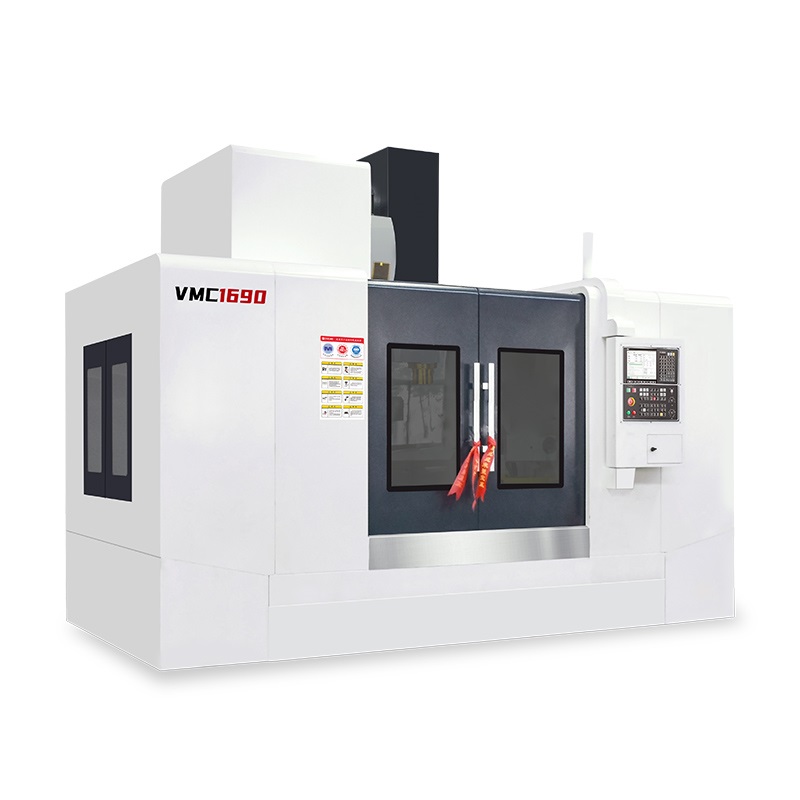

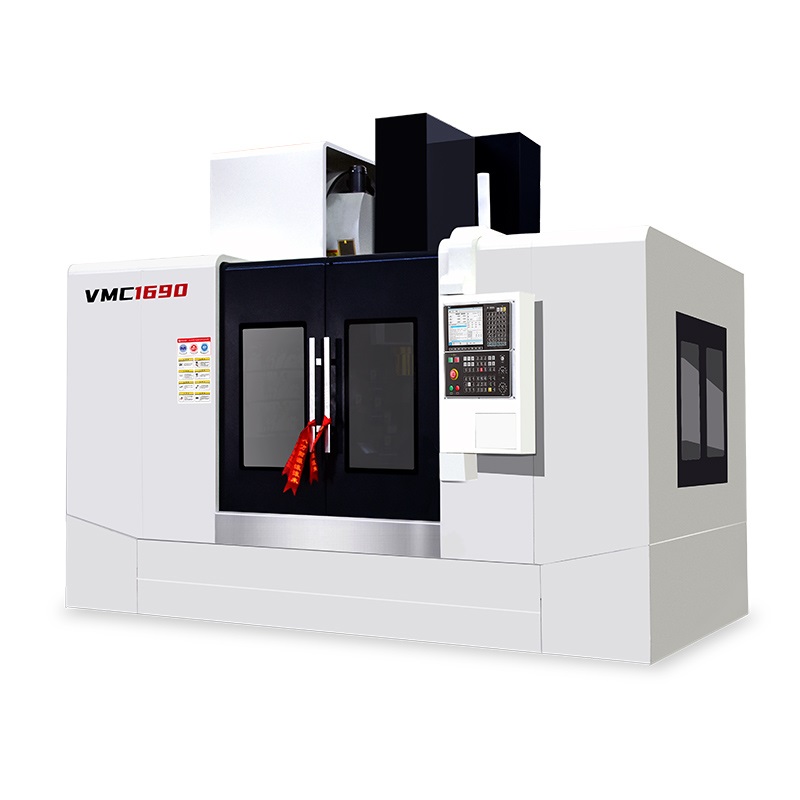

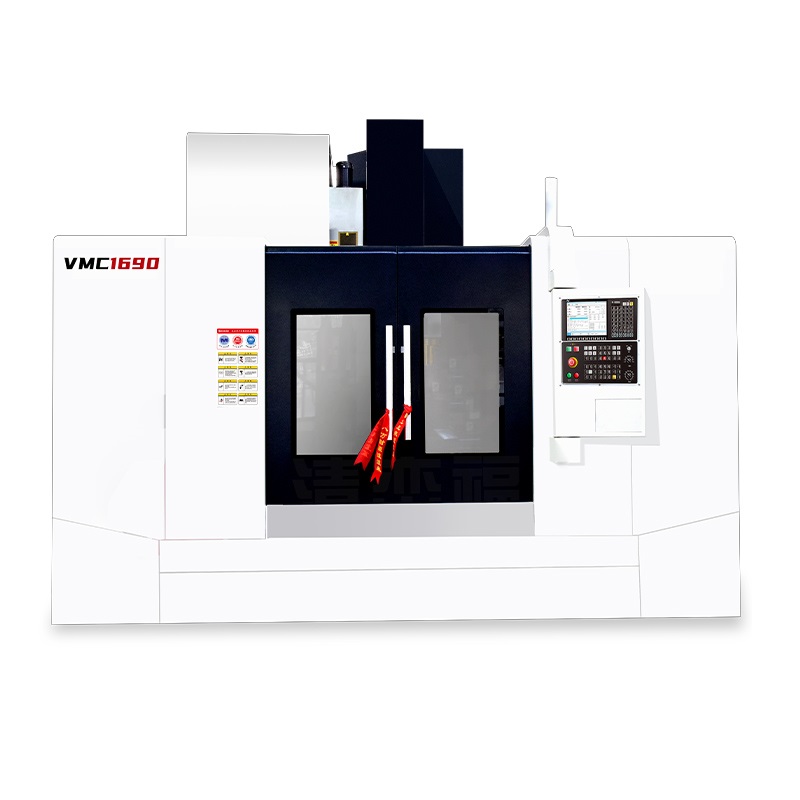

1690 Vertical Machining Centers

Vertical Machining Centers / High-precision Heavy-duty

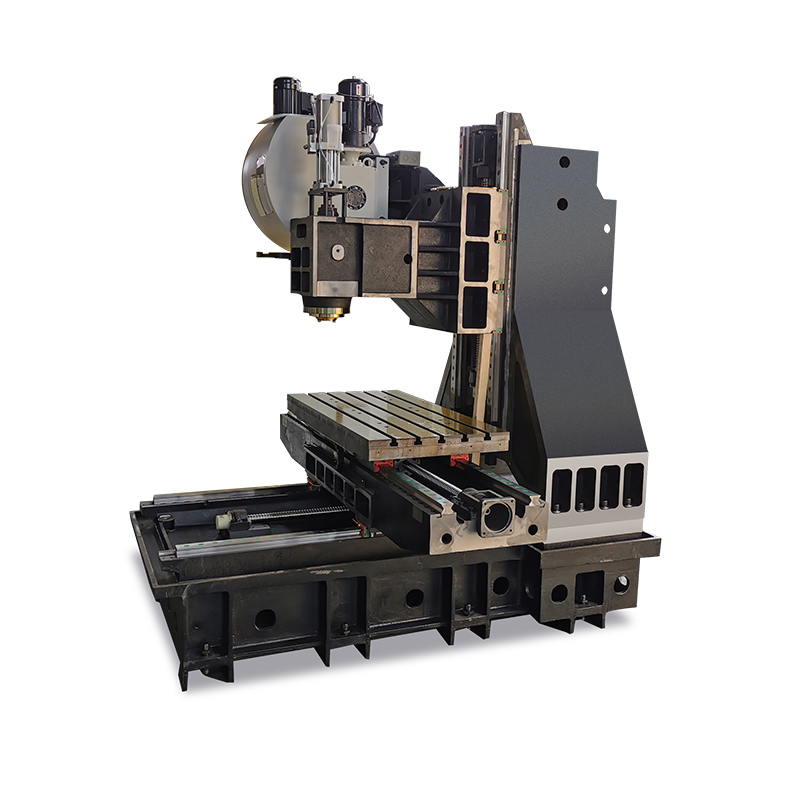

* The bed structure of this machine tool is equipped with a 1.64m long span chassis and widened columns, making the structure more stable.

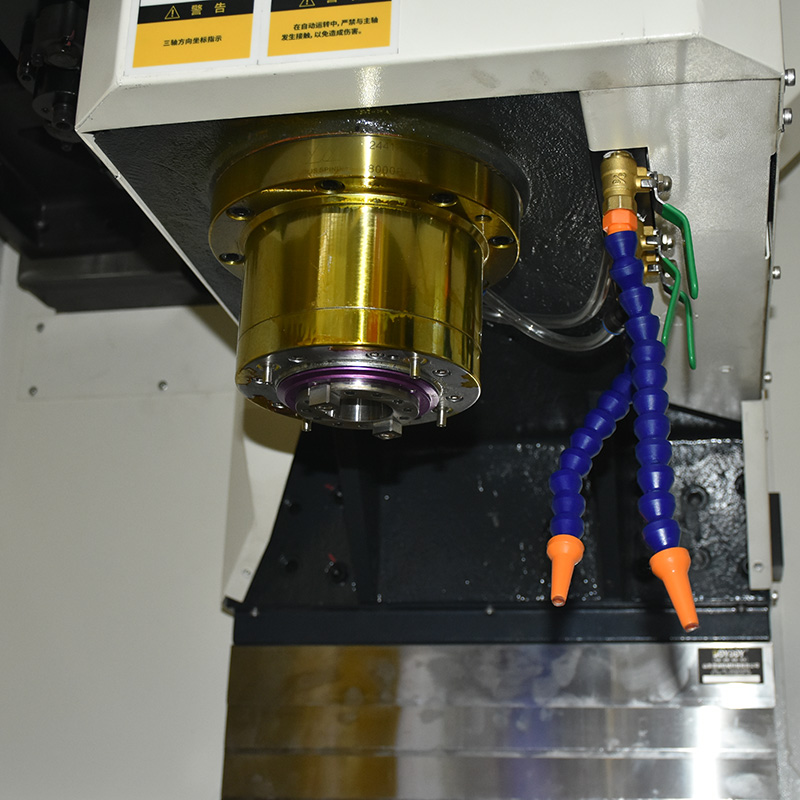

* The main shaft adopts the BT50-190 outer diameter short nose type main shaft, equipped with 72 teeth and broadband wheels+15KW rated 1000 low-speed high torque motor, high load, heavy cutting, and a 50% increase in machining torque
Technical Specifications

Product Details Parameters

Product Details

Product Parameters

SpeicificationsVMC1690

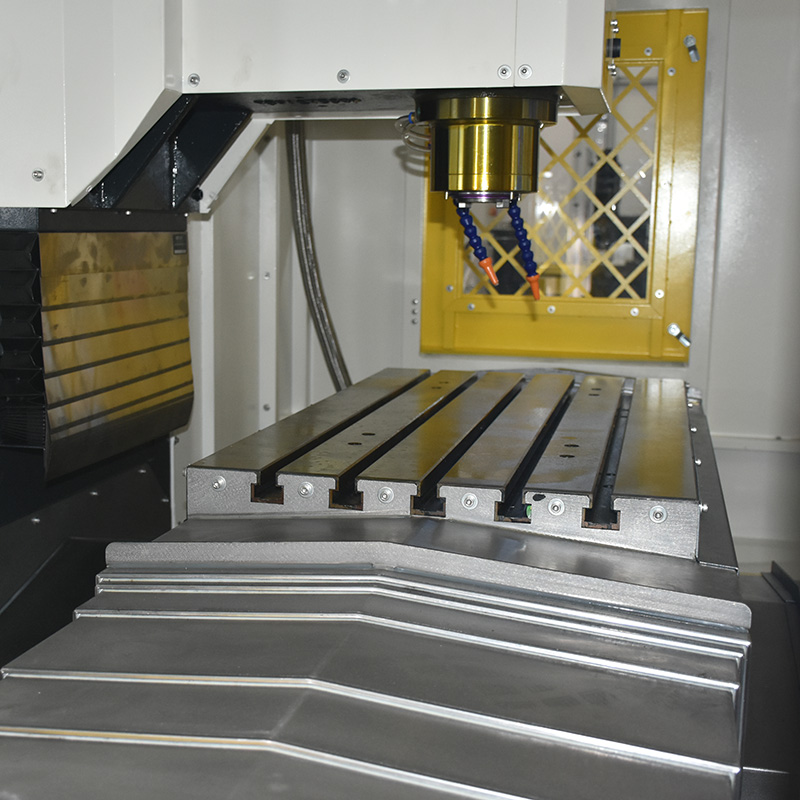

Table size (mm)1600×800
Max. worktable load(kg)1500
X-axis travel(mm)1600
Y-axis travel(mm)900
Z-axis travel(mm)700
X-axis Fast shift speed(m/min)20
Y-axis Fast shift speed(m/min)20
Z-axis Fast shift speed(m/min)14
Spindle taper holeBT50-190
Spindle speed (rpm)6000
Machine size (mm)4500L*3600W*2800H
Machine weight (KG)12000
