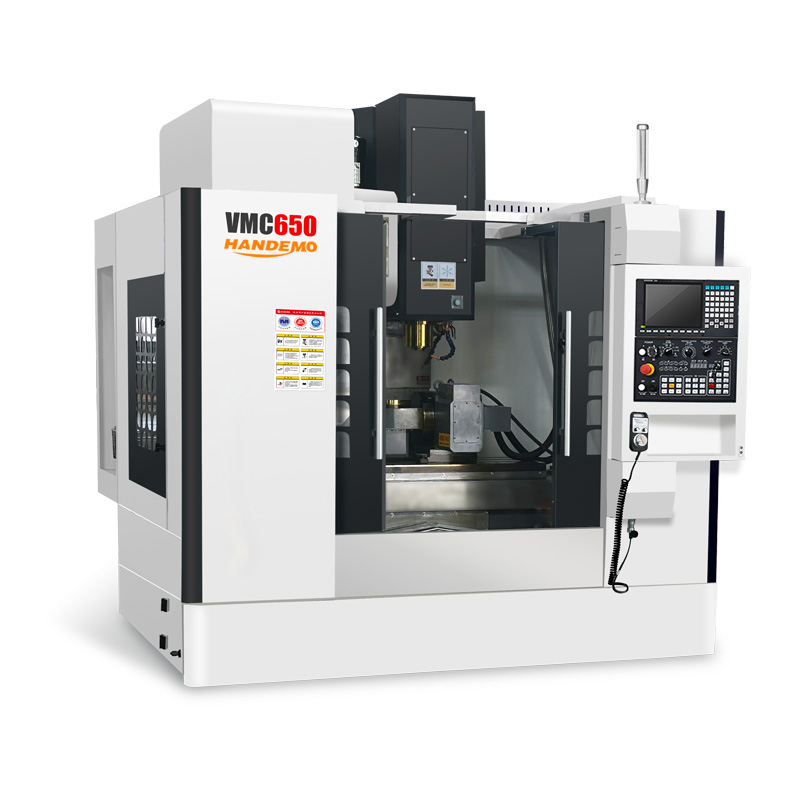

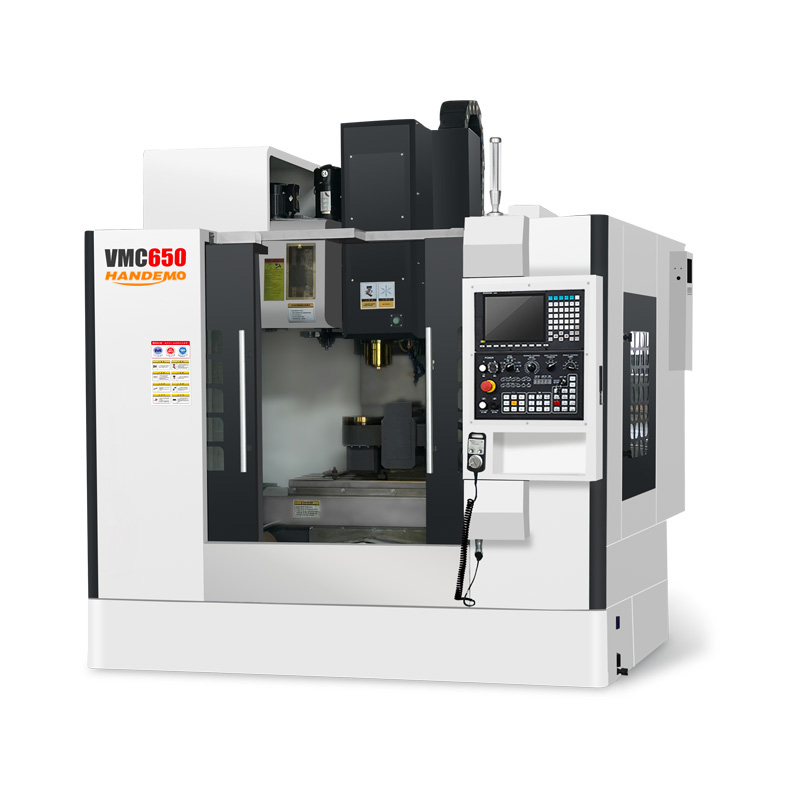

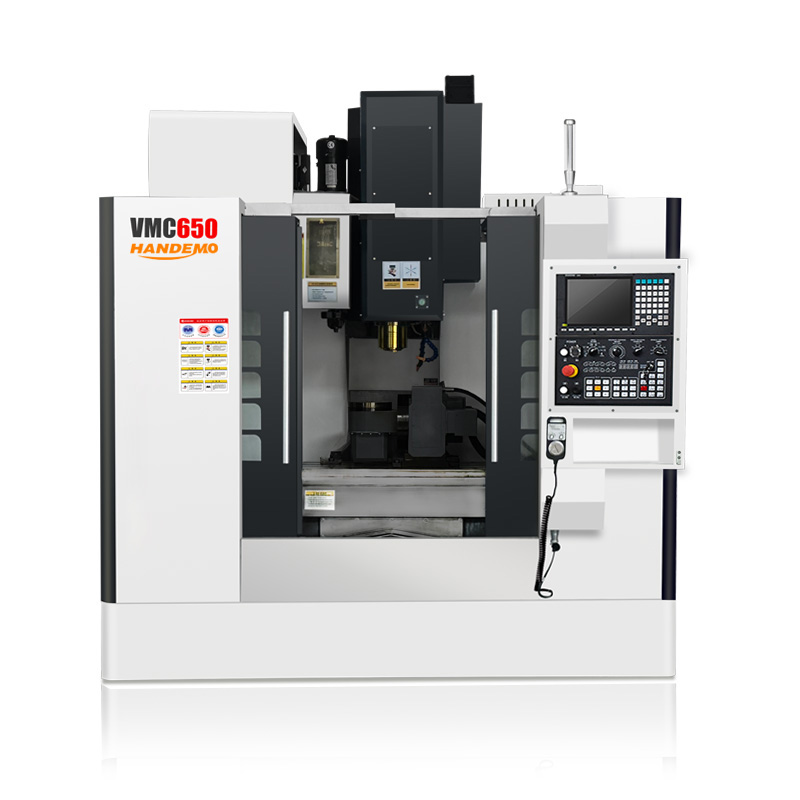

650 Vertical Machining Centers
Vertical Machining Centers / Global Standard Models
* Three axis travel 650 * 400 * 550, extended workbench 1000 * 400
* Suitable for small and batch processing, with a small footprint.
* Suitable for small and batch processing, with a small footprint.
Technical Specifications
Product Details Parameters
Product Details
Product Parameters
| Speicifications | VMC650 |
| Table size （mm） | 1000×400 |
| Max. worktable load（kg） | 400 |
| X-axis travel(mm) | 650 |
| Y-axis travel(mm) | 400 |
| Z-axis travel(mm) | 550 |
| X-axis Fast shift speed(m/min) | 32 |
| Y-axis Fast shift speed(m/min) | 32 |
| Z-axis Fast shift speed(m/min) | 24 |
| Spindle taper hole | BT40Φ120 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 2400L*2100W*2300H |
| Machine weight (KG) | 3800 |
