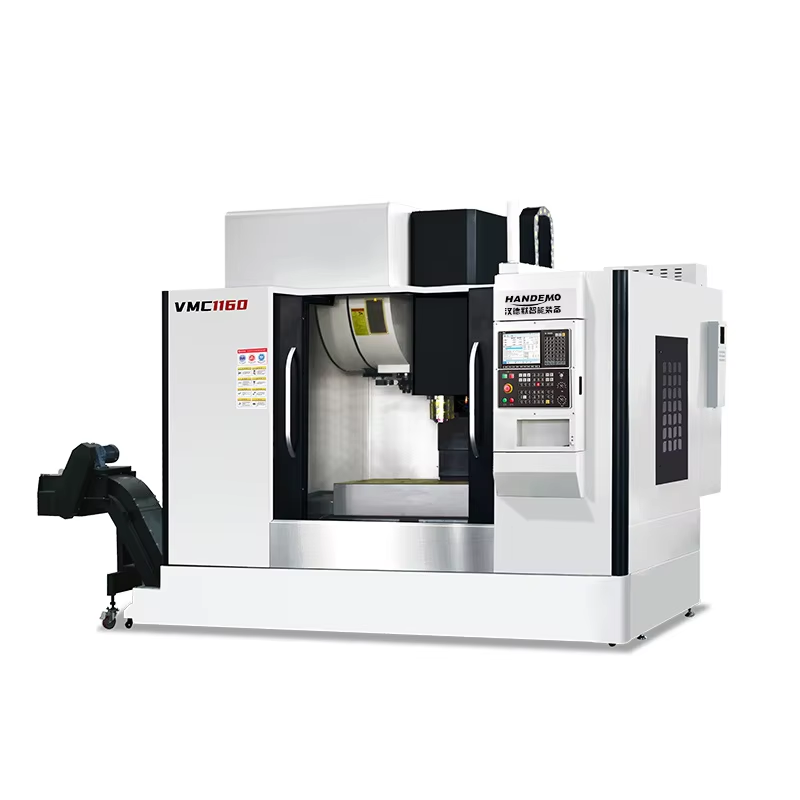

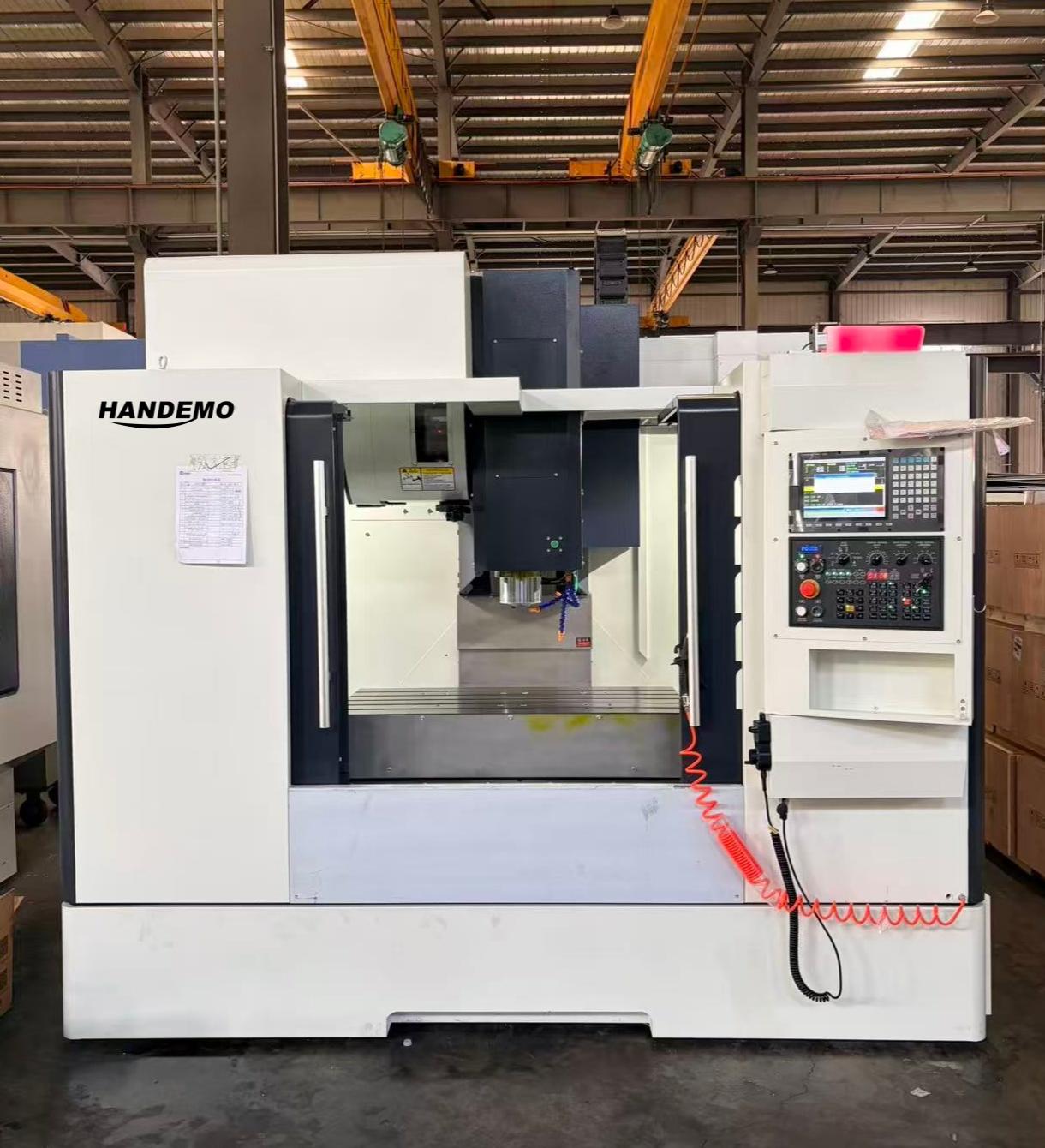

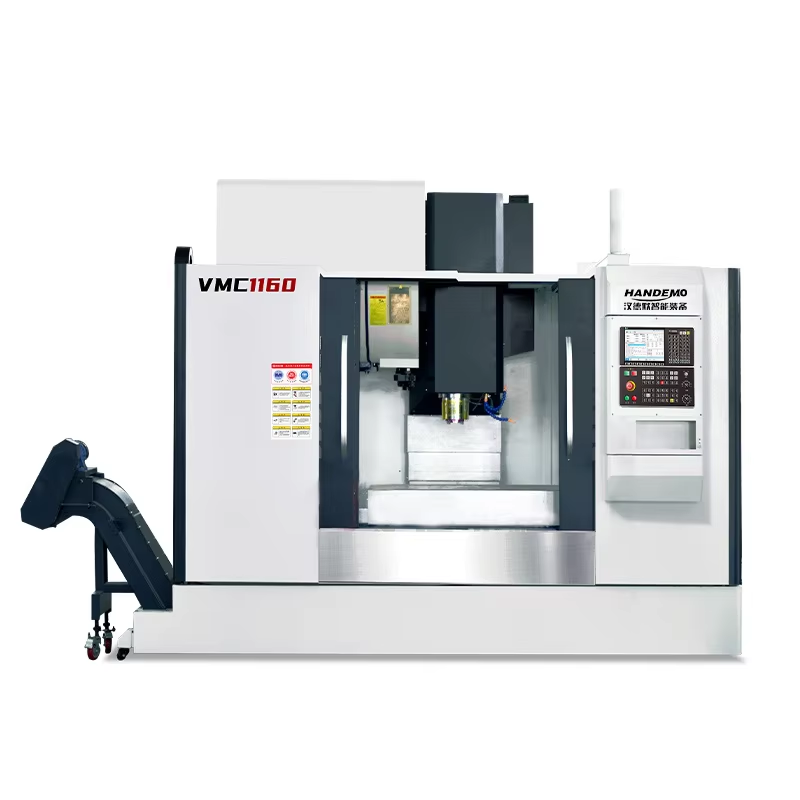

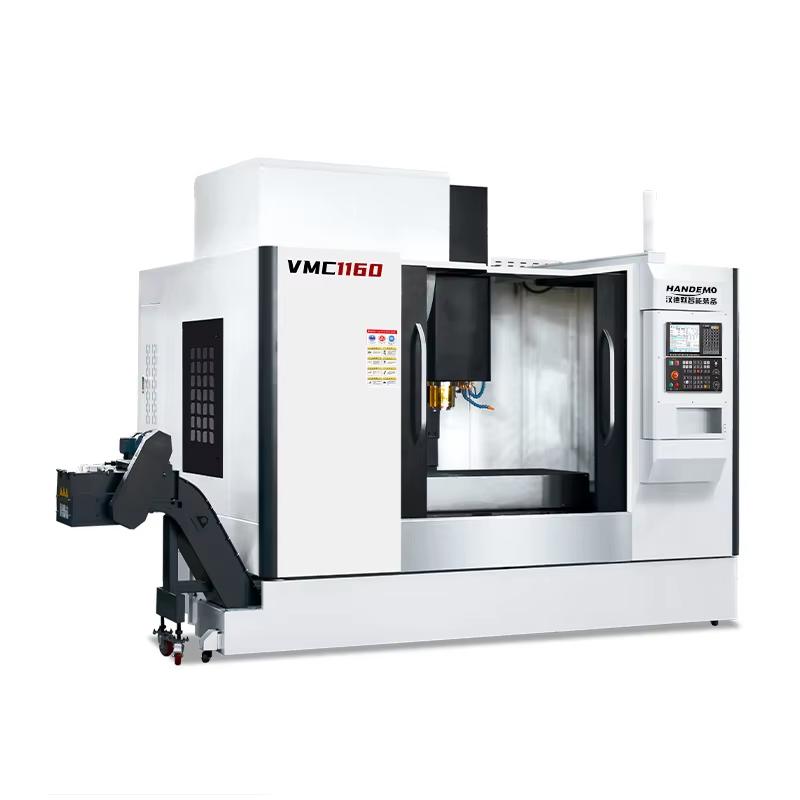

1160 Vertical Machining Centers
Vertical Machining Centers / Global Standard Models

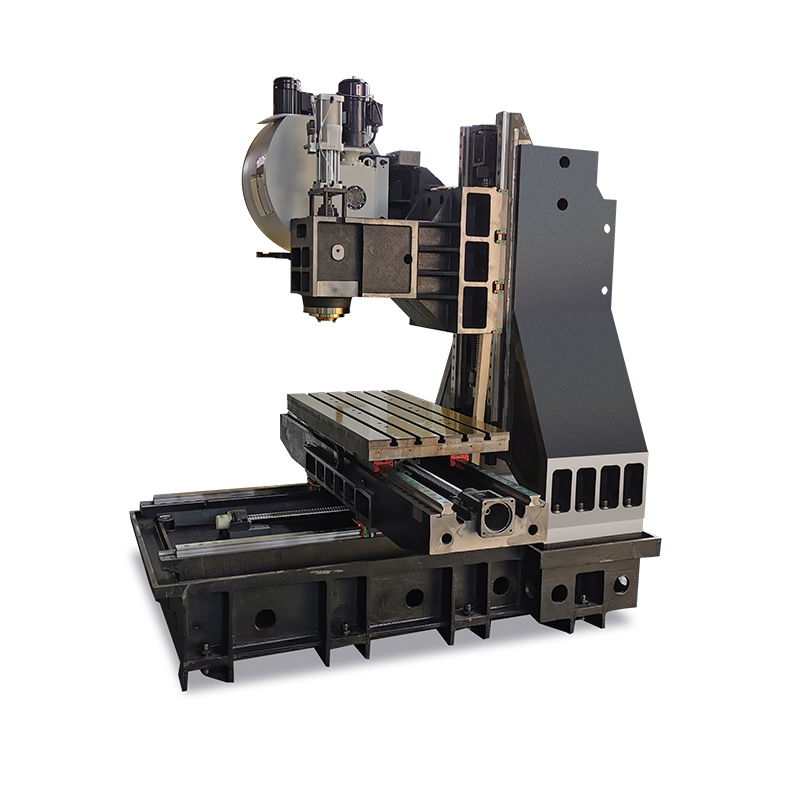

*Three axis travel of 1100 * 600 * 600, equipped with heavy-duty widened guide rails, high cutting efficiency;
*NSK screw, high precision, good stability, and low noise;
*NSK screw, high precision, good stability, and low noise;
Technical Specifications
Product Details Parameters
Product Details
Product Parameters
| Speicifications | VMC1160 | VMC1160P |
| Table size （mm） | 1200×600 | 1200×600 |
| Max. worktable load（kg） | 800 | 800 |
| X-axis travel(mm) | 1100 | 1100 |
| Y-axis travel(mm) | 600 | 600 |
| Z-axis travel(mm) | 600 | 600 |
| X-axis Fast shift speed(m/min) | 24 | 24 |
| Y-axis Fast shift speed(m/min) | 24 | 24 |
| Z-axis Fast shift speed(m/min) | 18 | 18 |
| Spindle taper hole | BT40Φ150 | BT40Φ150 |
| Spindle speed (rpm) | 8000 | 8000 |
| Machine size (mm) | 3100L*2500W*2800H | 3100L*2500W*2800H |
| Machine weight (KG) | 6500 | 6700 |
| X-axis Positioning Accuracy(mm) | 0.053 | - |
| Y-axis Positioning Accuracy(mm) | 0.014 | - |
| Z-axis Positioning Accuracy(mm) | 0.010 | - |
