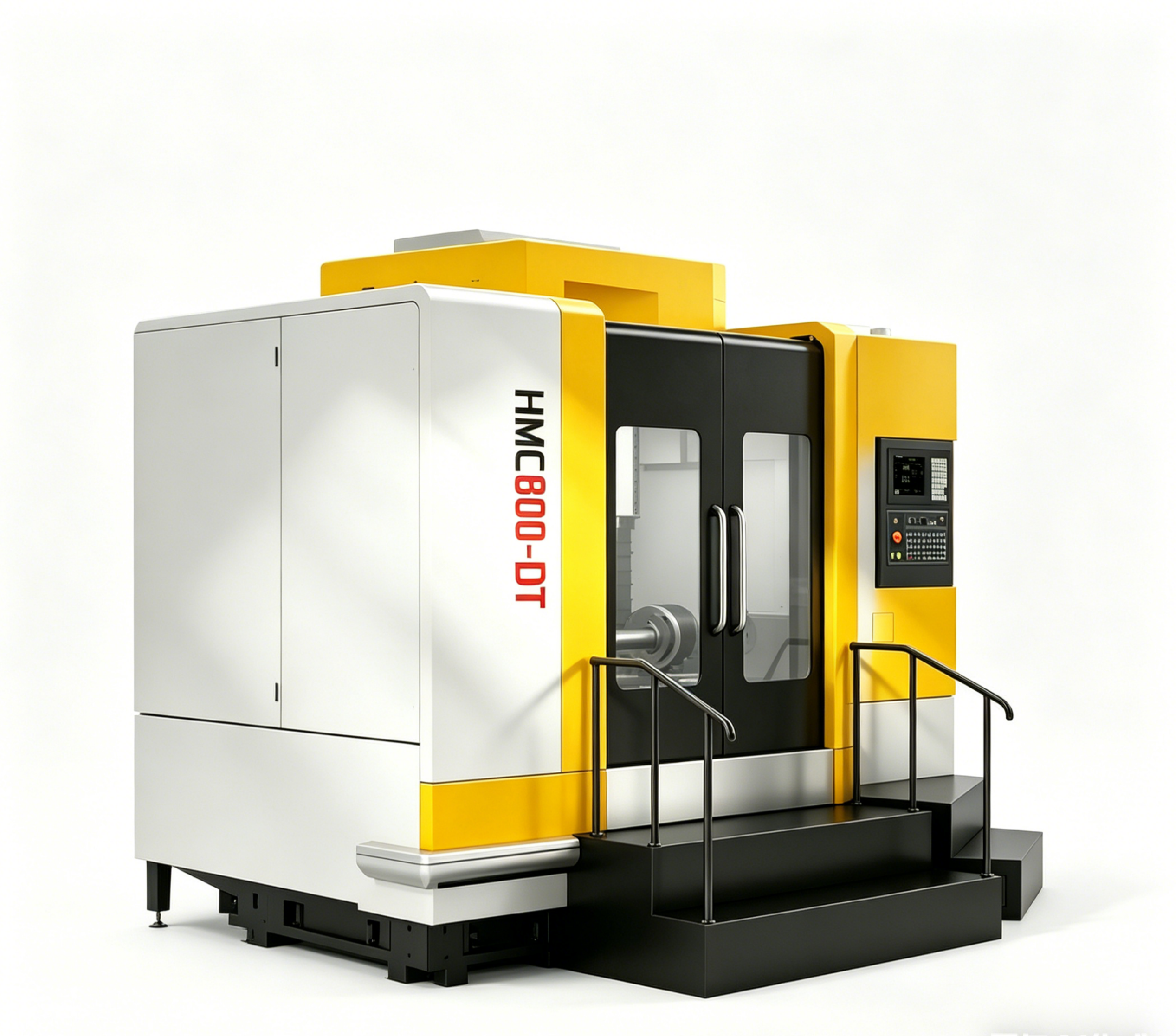

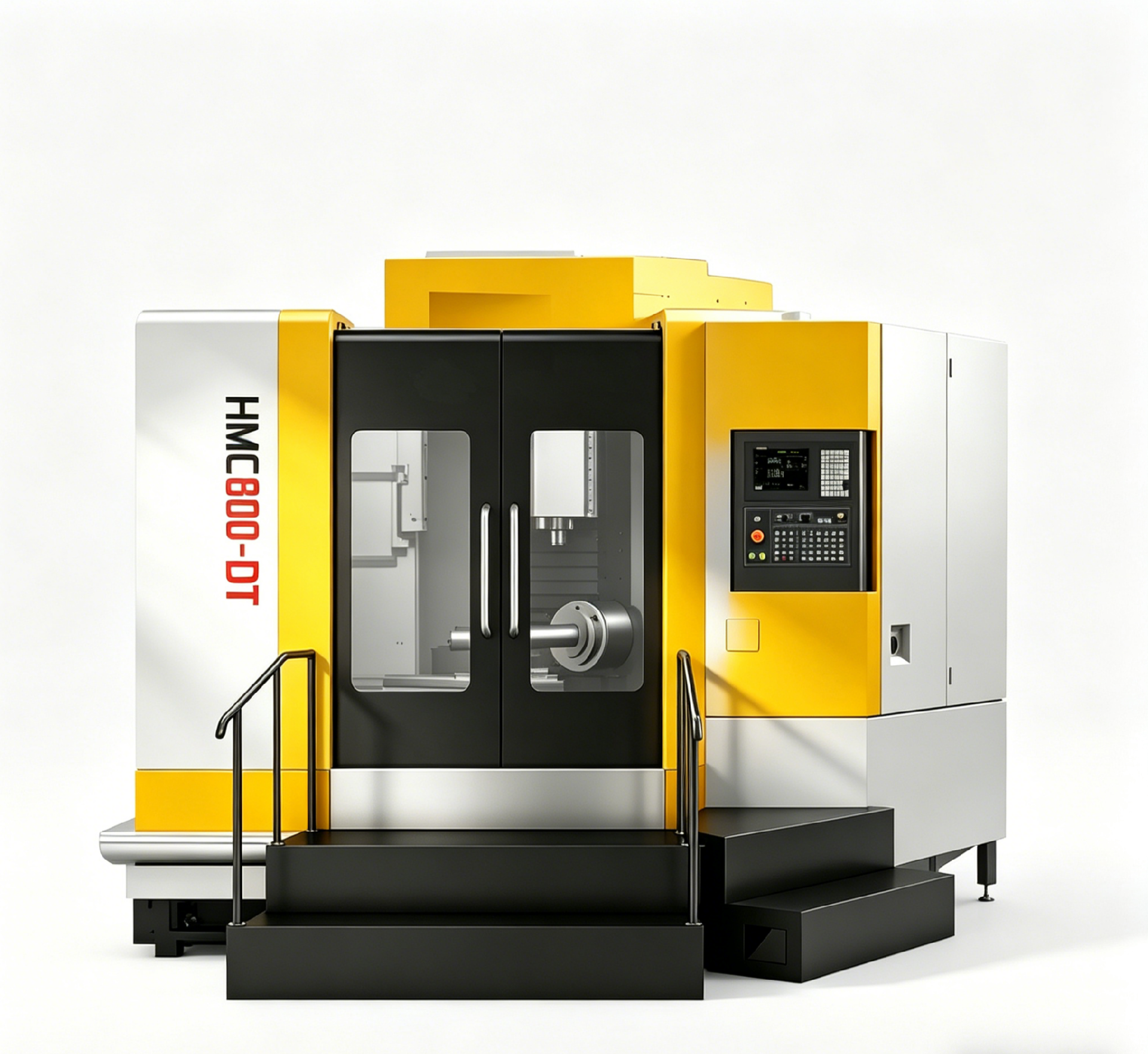

800-DT Horizontal Machining Centers

Horizontal Machining Centers / High-speed Efficient T-Type

* Adopting a T-shaped split structure with reserved exchange workbench interface.
* The X-axis guide rail adopts a high and low rail structure to improve the stability of machine tool movement.
* The spindle is equipped with a reducer structure to improve the cutting torque of the machine tool spindle.
* Adopting a 55 heavy-duty guide rail with a larger span between the rails, the spindle adopts a BT50-200 spindle

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	HMC800
Table size （mm）	800×800
Max. worktable load（kg）	2500
T-slot (numberwidthdistance)	7-22-100
X-axis travel(mm)	1300
Y-axis travel(mm)	1150
Z-axis travel(mm)	1000
X-axis Fast shift speed(m/min)	12
Y-axis Fast shift speed(m/min)	12
Z-axis Fast shift speed(m/min)	12
Spindle taper hole	BT50-200
Spindle speed (rpm)	6000
Machine weight (KG)	16000
