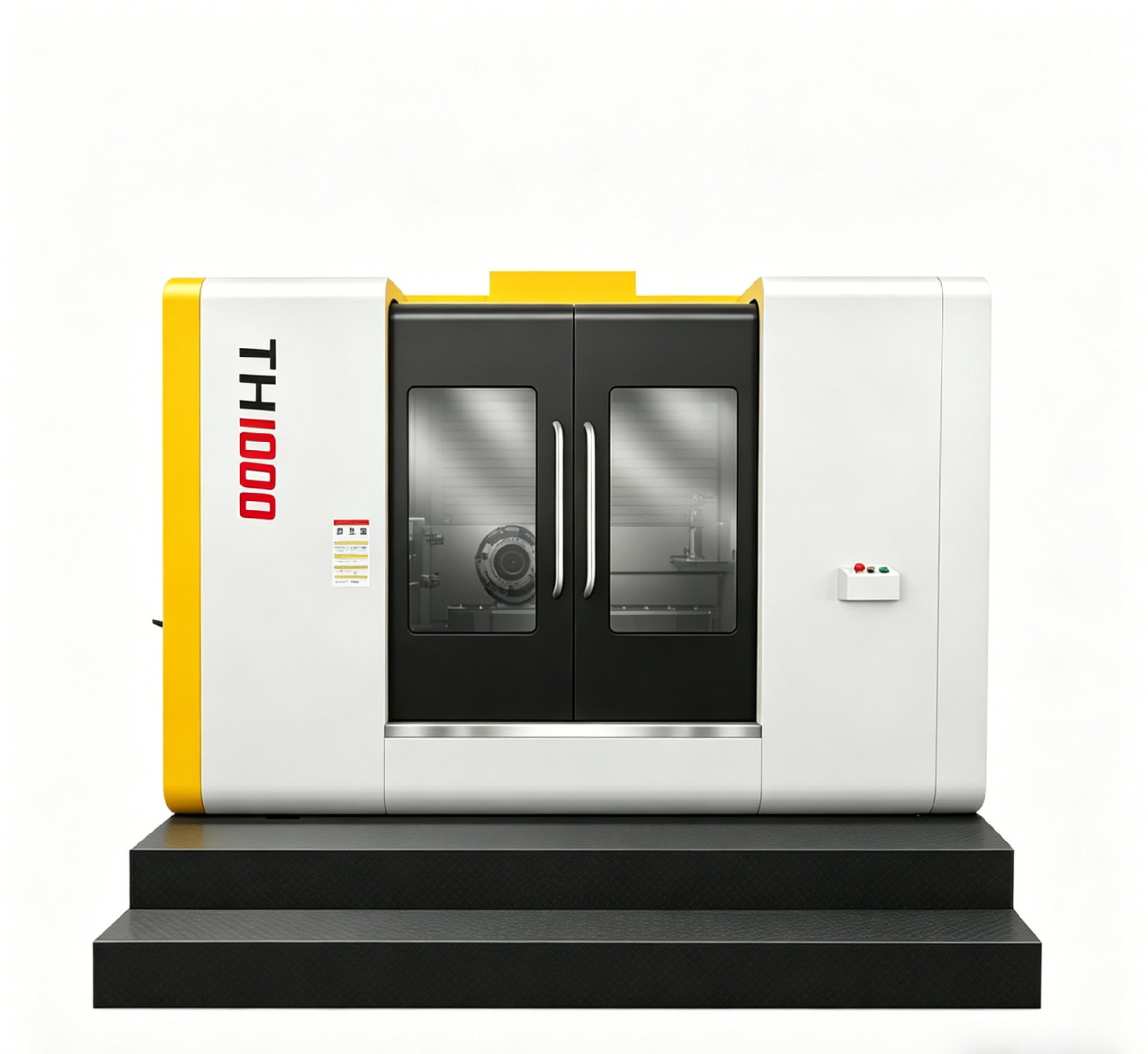

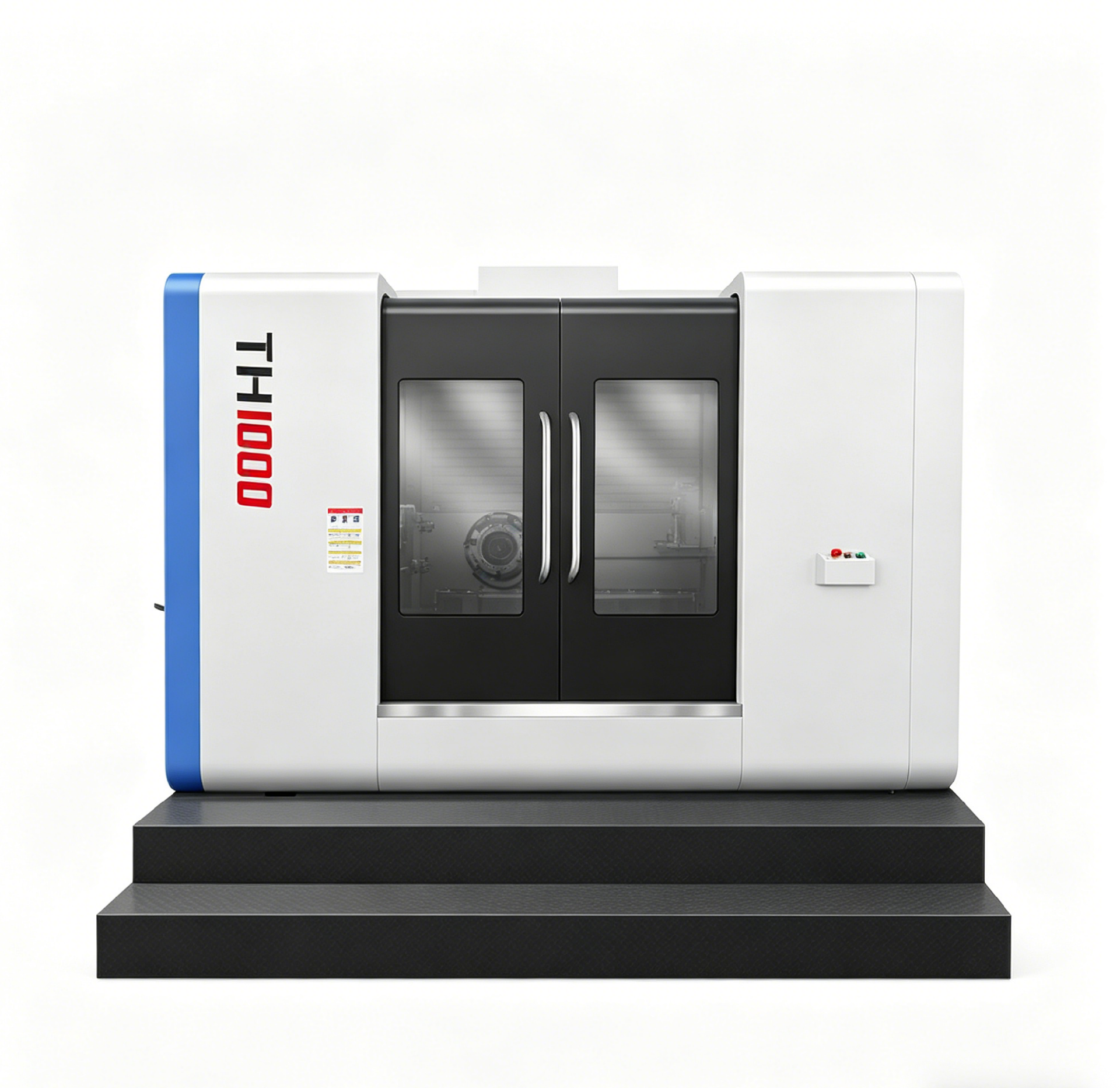

TH1000 Horizontal Machining Centers
Horizontal Machining Centers / Compact Boring And Milling Machine
* The structure is divided into boring and milling machine structure, positive T-structure, and inverted T-structure, and suitable structures can be selected according to different needs.
* Suitable for processing products such as box bodies, valve bodies, molds, etc.
* Suitable for processes such as multi face and multi angle machining, boring, and U-shaped brick drilling.
* Suitable for processing products such as box bodies, valve bodies, molds, etc.
* Suitable for processes such as multi face and multi angle machining, boring, and U-shaped brick drilling.
Technical Specifications
Product Details Parameters
Product Details
Product Parameters
| Speicifications | TH1000 |
| Table size （mm） | 1000×1000 |
| Max. worktable load（kg） | 3500 |
| T-slot (number*width*distance) | 7-22-125 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 1100 |
| Z-axis travel(mm) | 1200 |
| X-axis Fast shift speed(m/min) | 15 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 15 |
| Spindle taper hole | BT50Φ190 |
| Spindle speed (rpm) | 6000 |
| Machine weight (KG) | 18000 |
